Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

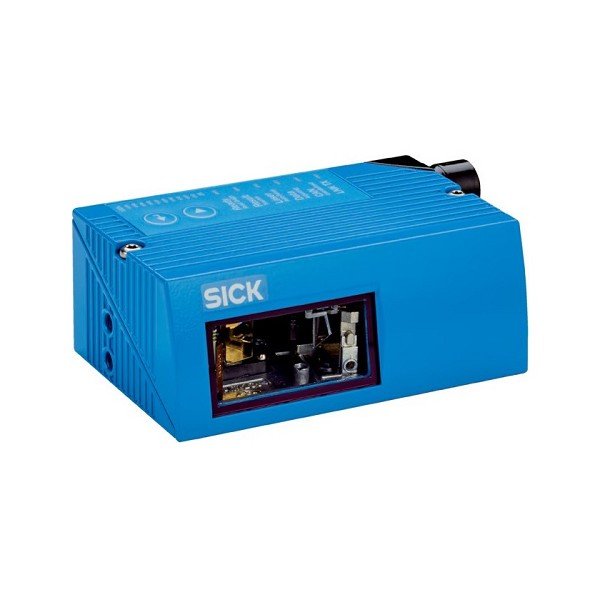

Part Number : CLV630-1121S01
Task : Identifying – 1D code
Version : Long Range
Connection type : Ethernet
Reading field : Front
Sensor type : Raster scanner
Optical focus : Fixed focus
Light source : Light spot, laser, Visible, Red, 655 nm
Light spot : Oval
Laser class : 2 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle : ≤ 50°
Reading distance : 60 mm … 735 mm
Scanning frequency : 400 Hz … 1,200 Hz
Code resolution : 0.35 mm … 1 mm
Raster height, number of lines, at distance : 15 mm, 8, 200 mm
Connection type : 2 x M12 cylindrical connectors (12-pin male connector, 4-pin female connector) on swivel connector
Supply voltage : 18 V DC … 30 V DC
Power consumption : 5 W
Housing : Aluminum die cast
Housing color : Light blue (RAL 5012)
Window material : Plastic
Enclosure rating : IP65 (EN 60529)
Protection class : III (EN 61140)
Dimensions (L x W x H) : 61 mm x 96 mm x 38 mm
Weight : + 250 g, without connecting cable
Shipping Weight : 1.5 kg
