Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

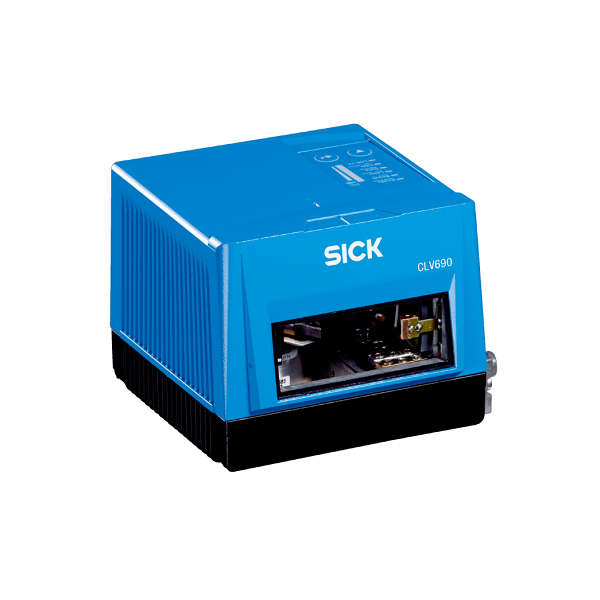

Part Number : CLV690-0010
Task : Identifying – 1D code
Version : Standard Density
Connection type : Depending on the cloning plug used
Reading field : Front
Sensor type : Line scanner
Optical focus : Auto focus (alternative: dynamic focus control)
No. of distance configurations: ≤ 8
Focus adjustment time : ≤ 20 ms
Focus trigger source : Data interface / Digital inputs
Light source : Light spot, laser, Visible, Red, 660 nm
Laser class : 2 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle : ≤ 60°
Reading distance : 500 mm … 2,100 mm
Scanning frequency 400 Hz … 1,200 Hz
Code resolution : 0.3 mm … 1 mm
Connection type : Depending on the cloning plug used
Supply voltage : 18 V DC … 30 V DC
Power consumption : 15 W
Housing : Aluminum die cast
Housing color : Light blue (RAL 5012)
Window material : Plastic
Enclosure rating : IP65 (EN 60529/A1 (2002-02))
Weight : 1.5 kg
Shipping Weight : 2.5 kg
