Estimated Lead Time : 6 – 8 weeks.

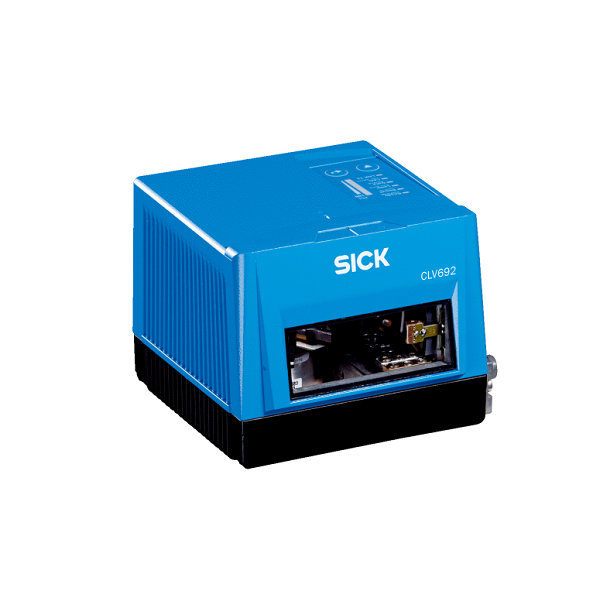

Manufacturer : SICK Sensors
Part Number : CLV692-0000
Task : Identifying – 1D code
Version : High Density
Connection type : Depending on the cloning plug used
Reading field : Front
Sensor type : Line scanner
Optical focus : Auto focus (alternative: dynamic focus control)
No. of distance configurations : ≤ 8
Focus adjustment time : ≤ 20 ms
Focus trigger source : Data interface / Digital inputs
Light source : Light spot, laser, Visible, Red, 660 nm
Laser class : 2 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle : ≤ 60°
Reading distance : 400 mm … 1,600 mm
Scanning frequency : 400 Hz … 1,200 Hz
Code resolution : 0.17 mm … 0.4 mm
Connection type Depending on the cloning plug used
Supply voltage : 18 V DC … 30 V DC
Power consumption : 15 W
Housing : Aluminum die cast
Housing color : Light blue (RAL 5012)
Window material : Glass
Enclosure rating : IP65 (EN 60529/A1 (2002-02))
Dimensions (L x W x H) : 117 mm x 117 mm x 94 mm
MTBF : 100,000 h
MTTF : 40,000 h (Laser diode)
Weight : 1,500 g
Shipping Weight : 3 kg
