Manufacturer: SICK SENSORS

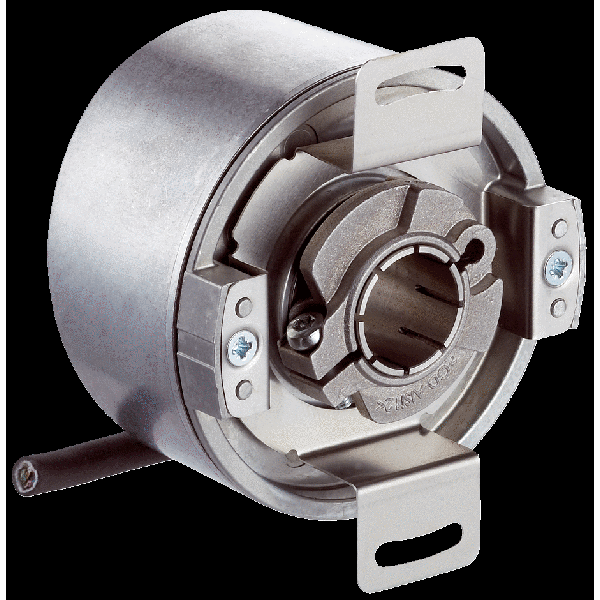

DFS60A-T5AM65536
Main
Performance
Pulses per revolution : 65,536 1)
Measuring step : 90° electric/pulses per revolution
Measuring step deviation at binary number of lines : ± 0.0015°
Error limits : ± 0.03°
1) See maximum revolution range.
Interfaces
Communication interface : Incremental
Communication Interface : detail TTL / HTL
Factory setting : Factory setting: output level TTL
Number of signal channels : 6-channel
Programmable/configurable : ?
Initialization time
32 ms 1)
30 ms
Output frequency : ≤ 820 kHz
Load current : ≤ 30 mA
Power consumption : ≤ 0.7 W (without load)
1) With mechanical zero pulse width.
Electrical data
Connection type : Cable, 8-wire, universal, 5 m 1)
Supply voltage : 4.5 … 32 V
Reference signal, number : 1
Reference signal, position : 90°, electric, logically gated with A and B
Reverse polarity protection : ?
Short-circuit protection of the outputs : ? 2) 3)
MTTFd: mean time to dangerous failure : 300 years (EN ISO 13849-1) 4)
1) The universal cable connection is positioned so that it is possible to lay it without bends in a radial or axial direction.
2) Programming TTL with ≥ 5.5 V: short-circuit opposite to another channel or GND permissable for maximum 30 s.
3) Programming HTL or TTL with < 5.5 V: short-circuit opposite to another channel, US or GND permissable for maximum 30 s. 4) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532. Mechanical data Mechanical design : Through hollow shaft Shaft diameter : 12 mm Weight : + 0.2 kg Shaft material : Stainless steel Flange material : Aluminum Housing material : Aluminum die cast Start up torque : 0.8 Ncm (+20 °C) Operating torque : 0.6 Ncm (+20 °C) Permissible movement static ± 0.3 mm (radial) ± 0.5 mm (axial) Permissible movement dynamic ± 0.05 mm (radial) ± 0.01 mm (axial) Operating speed : ≤ 6,000 min?¹ 1) Moment of inertia of the rotor : 40 gcm² Bearing lifetime : 3.6 x 10^10 revolutions Angular acceleration : ≤ 500,000 rad/s² 1) Allow for self-heating of 3.3 K per 1,000 rpm when designing the operating temperature range. Shipping Weight : 1 Kg
