Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

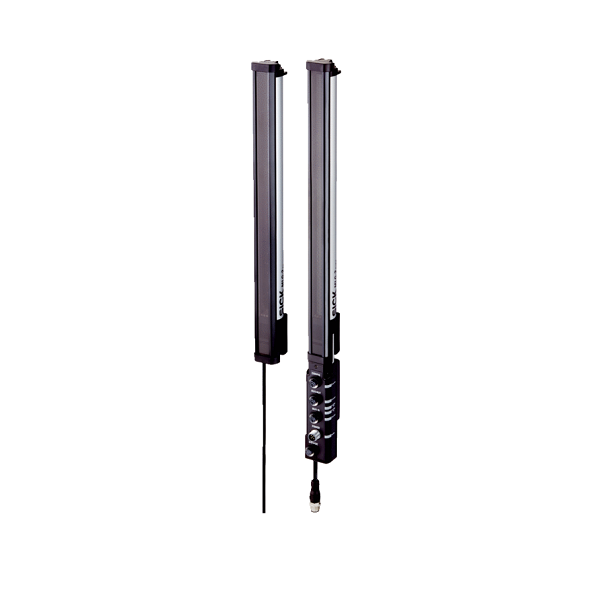

Part Number : MLG10N-1490P10502
Device version : ProNet – Advanced functionality incl. fieldbus
Sensor principle : Sender/receiver
Minimum detectable object (MDO) : 10 mm, 14 mm
Beam separation : 10 mm
Type of synchronization : Cable
Number of beams : 150
Detection height : 1,490 mm
Software features (default)
Q1 : Presence detection
Address 126 : (SSA)
PROFIBUS DP : DPV0
Operating mode
Standard : yes
Transparent : yes
Dust- and sunlight-resistant : yes
Function
Cross beam : yes
Beam blanking : yes
High-speed scan : yes
High measurement accuracy : yes
Applications
Switching output
Object recognition/object width
Object recognition
Height classification
Hole detection/hole size
Outside dimension/inside dimension
Object position
Hole position
Zone definitio
Data interface
Object detection
Hole detection
Object height measurement
Measurement of external dimension
Measurement of inside dimension
Measurement of object position
Measurement of hole position
Included with delivery 1 × sender
1 × sender
1 × receiver
1 x Fieldbus module
4/6 x QuickFix brackets (6 x QuickFix brackets for monitoring heights above 2 m)
1 × Quick Start Guide
Weight : 3.249 kg
Shipping Weight : 4.3 kg
