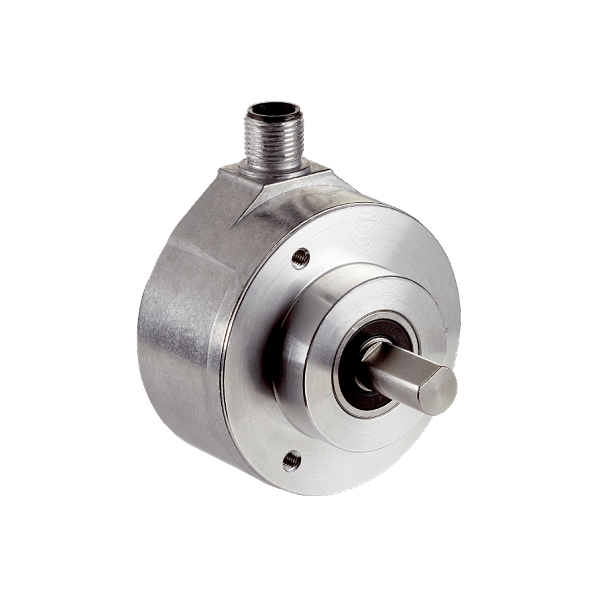

DFS60A-T5EM65536 INCREMENTAL ENCODER 65536 Lines, 10?32V, HTL/push pull
Mechanical data
Shaft diameter : 12 mm
Moment of inertia of the rotor : 40 gcm2
Max. angular acceleration : 5 x 10^5 rad/s2
Start up torque : 0.8 Ncm (20 °C)
Operating torque : 0.6 Ncm (20 °C)
Mechanical interface : Through hollow shaft, plastic
Mass : 0.2 kg (For an encoder with connector outlet)
Bearing lifetime : 3 x 10^9 revolutions
Permissible movement axial static/dynamic : ± 0.5 mm, ± 0.01 mm
Permissible movement radial static/dynamic : ± 0.3 mm, ± 0.05 mm
Maximum operating speed : 12,000 U/min 1)
1) Self-warming 3.3k per 1,000 1/min
Electrical data
Connection type : Cable, universal, 5 m
Reference signal, number : 1
Reference signal, position : 90 °, electronically, gated with A and B
Electrical interface : 10 V … 32 V, TTL/RS422
Operating power consumption (no load) : 40 mA
Supply voltage : 10 V … 32 V
Load current : 30
Maximum output frequency : 820 kHz
Ambient data
Resistance to shocks : 60 g, 6 ms (EN 60068-2-27)
Resistance to vibration : 20, 10 … 2,000 (EN 60068-2-6)
EMC : EN 61000-6-2, EN 61000-6-4
Protection class housing side with connector outlet : IP 65 1)
Protection class housing side with cable outlet : IP 65
Protection class shaft side : IP 65
Protection class standard : IEC 60529
Air humidity : 90 % 2)
Working temperature range : -20 °C … 100 °C
Storage temperature range : -40 °C … 100 °C, without package
1) With mating connector fitted 2) Condensation of the optical scanning not permitted
System data
Measuring step : 90 °, electronically/number of lines
Measuring step deviation : ± 0.002 °
Number of lines per revolution : 65536
Error limits : ± 0.03 °
Initialization time : 40
