Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

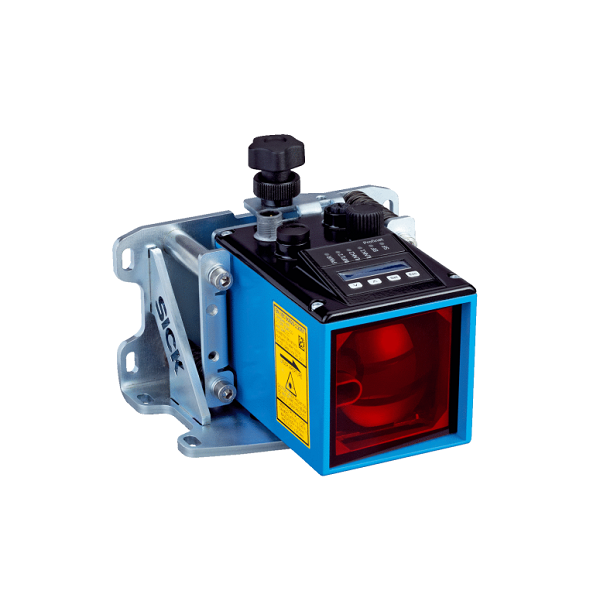

Part Number : DL100-23HA2110
Supply voltage Vs : DC 18 V … 30 V, limit values
Ripple : 5 Vpp
Initialization time : Typ. 1.5 s
Housing material : Metal (Aluminum die cast)
Window material : Plastic (PMMA)
Connection type : Male connector, M12, SPEEDCON™ compatible
Indication : 6 digit 5 x 7 dot matrix display, LEDs
Weight : Approx. 800 g (with mounting bracket: approx. 1,600 g)
Current consumption : At 24 V DC < 1,000 mA Dimensions (W x H x D) : 69.4 mm x 82.5 mm x 100.2 mm Modulation frequency : Fix Enclosure rating : IP65 Protection class : III MTTFD : 101 years DCavg : 0% Scope : Indoor Measurement range min ... max : 0.15 m ... 300 m, on “diamond grade” reflective tape Target : Reflector Resolution : 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm Repeatability : 2 mm Measurement accuracy : ± 3 mm Response time : 2 ms Measurement cycle time : 1 ms Output time : 1 ms Light source : Laser, red , visible red light Laser class : 2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014) Typ. light spot size (distance) : 5 mm + (2 mm x distance in m) Max. movement speed : 15 m/s Acceleration (max.) : ≤ 15 m/s² Heating : yes Weight : Approx. 800 g (with mounting bracket: approx. 1,600 g) Shipping Weight : 2 kg
