Estimated Lead Time : 1 – 10 Working Days
Manufacturer : SICK Sensors

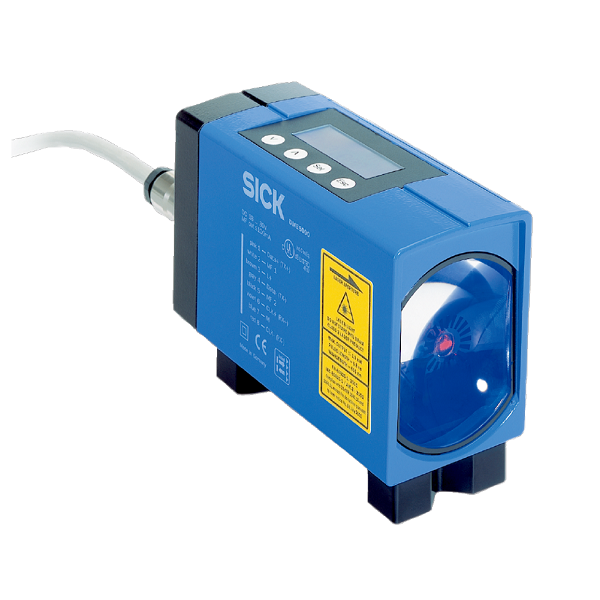

Part Number : DME5000-121
Supply voltage Vs : DC 18 V … 30 V, limit values
Ripple : < 5 Vpp Initialization time : 1.5 s Connection type : Male connector, M16, 8-pin Indication : Display Weight : Approx. 1,650 g Current consumption : At 24 V DC < 1,000 mA Enclosure rating : IP65 Protection class : II Measuring range : 0.15 m ... 70 m, on “diamond grade” reflective tape Target : Reflector Resolution : 0.05 mm ... 5 mm Repeatability : 0.5 mm Accuracy : ± 2 mm Response time : 6 ms Output time : 1 ms Light source : Laser, red, visible red light Laser class : 2, complies with 21 CFR 1041.00 and 1041.01 except for the tolerance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1 : 2014, EN 60825-1 : 2014) Typ. light spot size (distance) :130 mm (at 70 m)270 mm (at 150 m)360 mm (at 220 m) Max. movement speed : 10 m/s DeviceNet™ : yes Number : 2 Type : Push-pull : PNP/NPN Maximum output current IA : ≤ 100 mA Multifunctional input (MF) : 1 x MF Electromagnetic compatibility (EMC) : EN 61000-6-2, EN 55011 Ambient temperature operation :–40 °C ... +55 °C, operation with heating–40 °C ... +75 °C, operation with cooling case Ambient storage temperature : –25 °C ... +75 °C Effect of air pressure : 0.3 ppm/hPa Effect of air temperature : 1 ppm/K Temperature drift : Typ. 1.0 mm/K Typ. Ambient light immunity : ≤ 40,000 lx Mechanical load :Shock : (EN 600 68-2-27 / –2-29)Sine : (EN 600 68-2-6)Noise : (EN 600 68-2-64) Shipping Weight : 3 Kg
