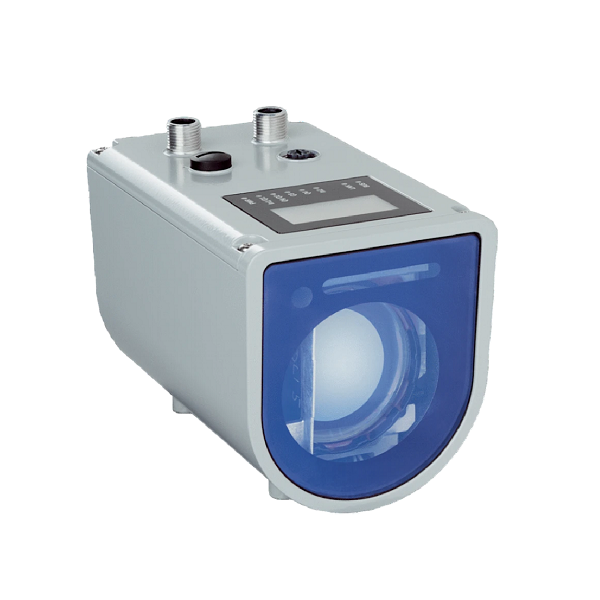

DT1000-S11101 SICK Sensors Long Range Distance Sensors Dx1000 Part Number : 1075436

Estimated Lead Time : 6 – 8 Weeks

Manufacturer : SICK Sensors

Part Number : DT1000-S11101

Measurement principle : HDDM+

Measurement range min … max :

0.2 m … 155 m, 6% remission factor 1) 2) 3)

0.2 m … 460 m, 90% remission factor 1) 2) 3)

Target : Natural objects

Resolution : 0.001 mm … 100 mm, adjustable 4)

Repeatability : ≥ 1 mm, See repeatability characteristic lines 1) 5) 6) 7)

Measurement accuracy : Typ. ± 15 mm 8) 9)

Response time : 3 ms … 384 ms 7)

Measurement cycle time :

1 ms

4 ms

16 ms

64 ms

128 ms

Output time : ≥ 1 ms 10)

Light source :

Infrared light (905 nm, measuring laser)

Visible red light (650 nm, Adjustment aid)

Laser class : 1, even with simultaneous operation of measurement and alignment laser (IEC 60825-1:2014, EN 60825-1:2014)

Typ. light spot size (distance) :

5 mm x 20 mm (at 1 m) 11)

20 mm x 20 mm (at 5 m) 11)

35 mm x 25 mm (at 10 m) 11)

150 mm x 50 mm (at 50 m) 11)

290 mm x 80 mm (at 100 m) 11)

570 mm x 140 mm (at 200 m) 11)

Filter :

Rain and snow filter

Fog filter

Moving average distance value

Kalman filter

Moving average speed value

Max. object temperature : +1,400 °C 12)

Additional function : Selection of relevant distance and signal level range, Selection of first or last echo in selected distance and signal level range

Average laser service life (at 25 °C) : 100,000 h 13)

Max. movement speed : 128 m/s

Supply voltage Vs : DC 18 V … 30 V, reverse polarity protected

Ripple : ≤ 5 Vpp 1)

Power consumption :

≤ 22 W, With heating switched off 2)

≤ 35 W, With heating switched on 2)

Initialization time : > 15 s

Housing material : Metal (Aluminum alloy (AlSi12))

Window material : Glass

Connection type : Round connector M12 x 1

Indication : Graphical, resistive touch display, status LEDs

Dimensions (W x H x D) : 84 mm x 104.4 mm x 140.5 mm

Enclosure rating :

IP65 3)

IP67 3)

Protection class : III (EN 61140)

Weight : 980 g

Shipping Weight : 2 kg
