Estimated Lead Time : 6 – 8 weeks.

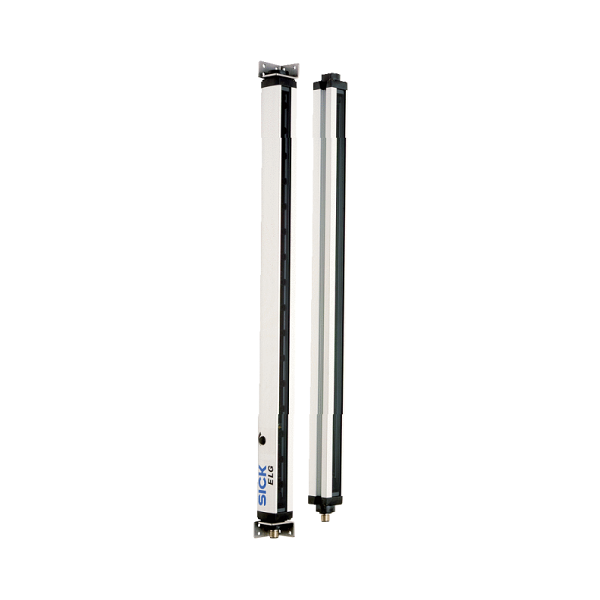

Manufacturer : SICK Sensors
Part Number : ELG3-1650P521
Sensor principle : Sender/receiver
Minimum detectable object (MDO) : 35 mm
Beam separation : 30 mm
Number of beams : 56
Detection height : 1,650 mm
Evaluation beams : Parallel beam
Wave length : 880 nm
Supply voltage Vs : DC 15 V … 30 V
Power consumption sender : < 100 mA Power consumption receiver : < 100 mA Ripple : < 5 Vpp Output current Imax. : ≤ 100 mA Output load, capacitive : 100 nF Output load, Inductive : 1 H Initialization time : 1 s Switching output : 2 x PNP Output mode : Q dark switching Dimensions (W x H x D) : 34 mm x 1,726 mm x 29 mm Connection type : Male connector M12, 4-pin Housing material : Aluminum Indication : LED Synchronization : Optical Enclosure rating : IP65 Circuit protection : UV connections, reverse polarity protected , Output Q short-circuit protected , Interference pulse suppression Protection class : III Pulse frequency : 250 kHz Front screen : PMMA Weight : 4,300 g Shipping Weight : 5.3 kg
