Estimated Lead Time : 6 – 8 weeks.

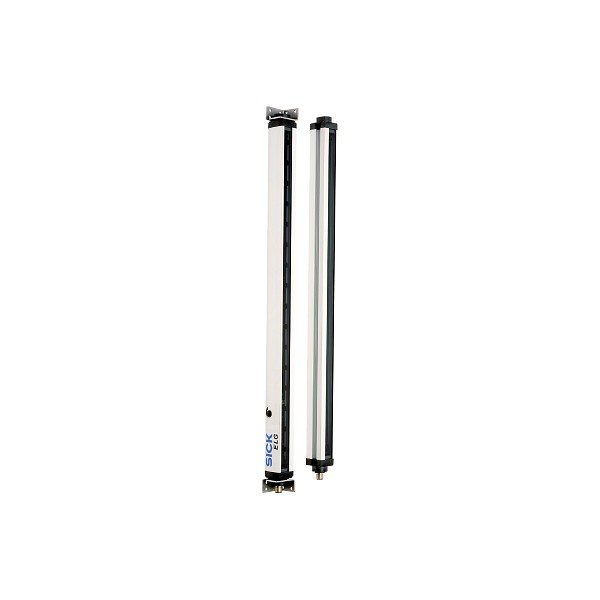

Manufacturer : SICK Sensors
Part Number : ELG3-1890R121
Sensor principle : Sender/receiver
Minimum detectable object (MDO) : 35 mm 1)
Beam separation : 30 mm
Number of beams : 64
Detection height : 1,890 mm
Evaluation beams : Parallel beam
Wave length : 880 nm
Supply voltage Vs : DC 15 V … 30 V 1)
Power consumption sender : < 100 mA 1) Power consumption receiver : < 100 mA 1) Ripple : < 5 Vpp Output current Imax. : ≤ 100 mA Output load, capacitive : 100 nF Output load, Inductive : 1 H Initialization time : 1 s Switching output : Relay 2) Output mode : Light switching 3) Dimensions (W x H x D) : 34 mm x 1,966 mm x 29 mm Connection type : Cable, 5-wire, 5 m Housing material : Aluminum Indication : LED Synchronization : Optical Enclosure rating : IP65 4) Circuit protection : UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Protection class : III Pulse frequency : 250 kHz Front screen : PMMA Weight : 4.8 kg Shipping Weight : 6 kg
