Estimated Lead Time : 4-6 Weeks

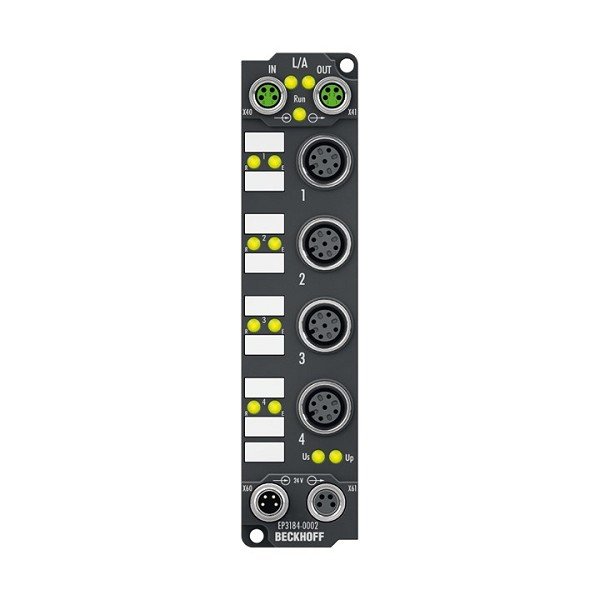

Manufacturer : BECKHOFF
Part Number : EP3184-0002
Protocol : EtherCAT
Bus interface : 2 x M8 socket, shielded, screw type
Number of inputs : 4 (single-ended), 1 per socket
Input connections : M12 x 1, 5-pin, a-coded
Connection method : M12 x 1, 5-pin, a-coded
Signal type : -10/0…+10 V | 0/4…20 mA, parameterizable per channel
Internal resistance : > 200 kΩ | typ. 85 Ω + diode voltage
Common-mode voltage UCM : max. 35 V
Resolution : 16 bit (incl. sign)
Measurement error/ uncertainty : < ±0.3 % (relative to full scale value) Conversion time : ~ 100 µs Input filter limit frequency : 5 kHz Nominal voltage : 24 V DC (-15 %/+20 %) Distributed clocks : yes Input filter : configurable Sensor supply : from load supply voltage UP Current consumption from US : 120 mA Power supply connection : feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Electrical isolation : 500 V Special features : current or voltage parameterizable Operating/storage temperature : -25…+60 °C/-40…+85 °C Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. : IP65/66/67 (conforms to EN 60529)/variable Approvals/markings : CE, UL, ATEX Ex marking : II 3 G Ex nA IIC T4 Gc Shipping Weight : 2kg
