Estimated Lead Time : 7 – 10 Days

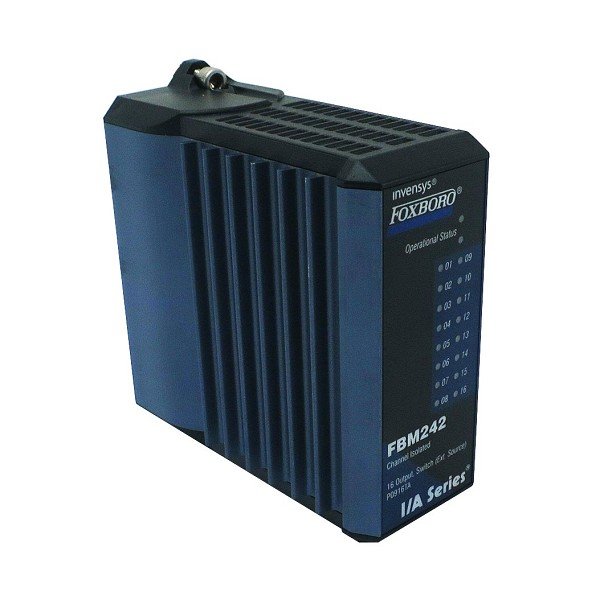

Foxboro ( by Schneider Electric )
Product No. : FBM242
Product Type : Externally Sourced, Discrete Output Interface Module
Features : Sixteen discrete outputs, Supports discrete output signals at voltages of 15 to 60 V dc ,120 V ac/125 V dc , 240 V ac , Each input and output is galvanically isolated , group isolated when used with external excitation , Compact, rugged design suitable for enclosure in Class G3 (harsh) environments, Executes the Discrete I/O or Ladder Logic program, with the following configurable options Input Filter Time, Fail Safe Configuration, Fail , Safe Fall-Back, and Sustained or Momentary Outputs
Input Voltage Range (Redundant) : 24 V dc +5%, -10%
Consumption (Maximum) : 3 W (maximum) at 24 V dc
Heat Dissipation : 6.5 W (maximum) at 24 V dc (with all outputs at 1.5 A each)
Calibration Requirements : The module and termination assemblies require no calibration.
Temperature Module : -20 to +70°C (-4 to +158°F)
Termination Assembly PVC : -20 to +50°C (-4 to +122°F)
Relative Humidity : 5 to 95% (noncondensing)
Dimensions (L x W x H) : 10.4 cm x 4.5 cm x 11.4 cm
Weight : 0.284 kg
Shipping Weight : 2 kg
