Manufacturer: SICK Sensors

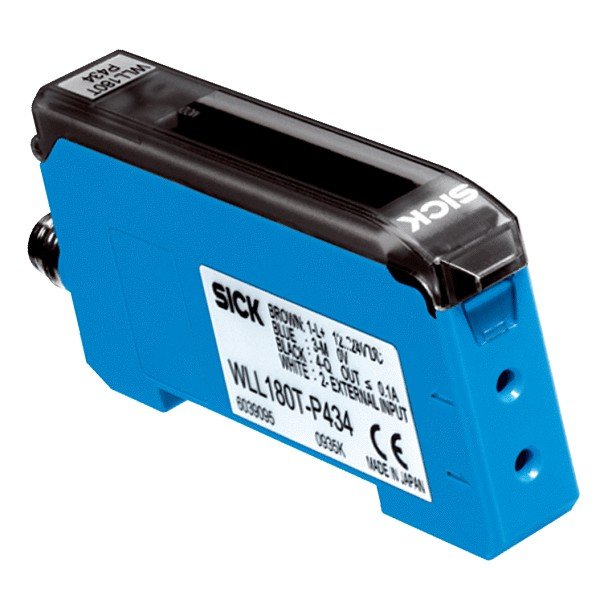

Fiber-optic sensors and fibers WLL180T-L432
Type:WLL180T-L432
Part number: 6039099
Device type: Base unit
Sensor/detection principle: Fiber-optic photoelectric sensor
Dimensions (W x H x D): 10.5 mm x 34.6 mm x 71.9 mm
Housing design (light emission): Rectangular
Sensing range max.: 0 m … 20 m, Through-beam system
Sensing range:
0 mm … 1,400 mm, Proximity system
0 … 18 m, Through-beam system
Focus: See LL3 fiber-optic data
Type of light: Visible red light
Light source: LED
Angle of dispersion: Approx. 65°
Wave length: 650 nm
Adjustment:
Menu-controlled
Single teach-in button
Cable
Time type:
Without time delay
Off delay
On delay
ON and OFF delay
One shot
Delay time: Programmable, 0 ms, 9,999 ms
Indication: Display
Display:
LED status display / 2x 4-character digital dual displays
Set value (green indicator) and actual value (red indicator) are displayed simultaneously
display of parameters
Supply voltage: 12 V DC … 24 V DC
Ripple: = 10 %
Power consumption: ? 50 mA
Output type: NPN, Open Collector
Switching mode: Light/dark switching
Switching mode selector: Manually selectable
Output current Imax.:100 mA
Response time: 16 µs, 70 µs, 250 µs, 2,000 µs, 8,000 µs
Switching frequency:
31.2 kHz
7.1 kHz
2 kHz
250 Hz
62.5 Hz
Connection type: Cable, 4-wire, 2 m
Cable material: PVC
Conductor cross-section: 0.2 mm²
Protection class: III
Weight: 25 g
Housing material: ABS/PC
plastic
Enclosure rating: IP 50
Ambient operating temperature: –25 °C … +55 °C
Ambient storage temperature: –40 °C … +70 °C
UL File No.: NRKH2.E300503 & NRKH8.E300503
Shipping Weight: 1 Kg
Download PDF File WLL180T-L432
