Estimated Lead Time: 6 – 8 Weeks.
Manufacturer : SICK Sensors

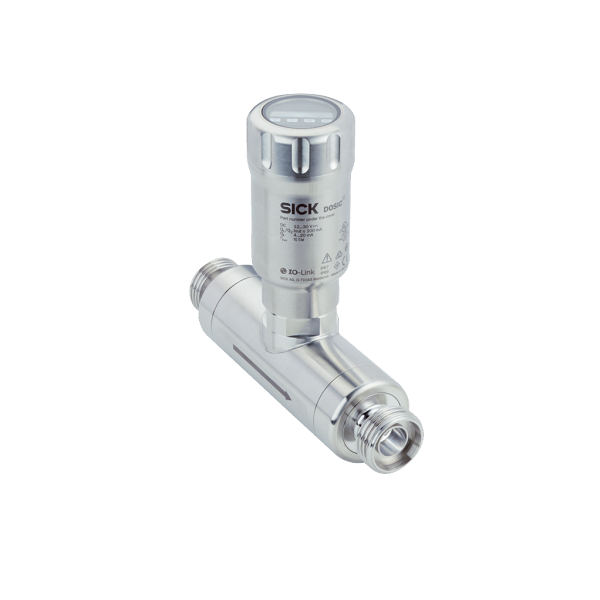

Part Number : FUM-H015F1MB80000
Measurement principle : Ultrasonic sensor
Measurement : Ultrasonic
Medium : Conductive and non-conductive liquids
Nominal width measuring tube : DN 15
Process temperature : –20 °C … +95 °C, up to 143°C for 60 minutes for SIP process (temperature measurement only)
Process pressure : –0.5 bar … 16 bar
Communication interface : IO-Link, IO-Link V1.1
EHEDG approval : yes
cULus certificate : yes
RoHS certificate : yes
FDA : yes
Temperature measurement : yes
Process connection : DIN 11851 DN 15
Wetted parts : Stainless steel 1.4404 (Ra ≤ 0,8 µm)
Housing material : Stainless steel 1,4305
Housing design : With viewing window made from PMMA (acrylic glass)
Enclosure rating : IP67/IP69 (DIN EN 60529)
Weight : 2 kg
Shipping Weight : 3 kg
