Estimated Lead Time : 4-6 weeks
Manufacturer : SICK Sensors

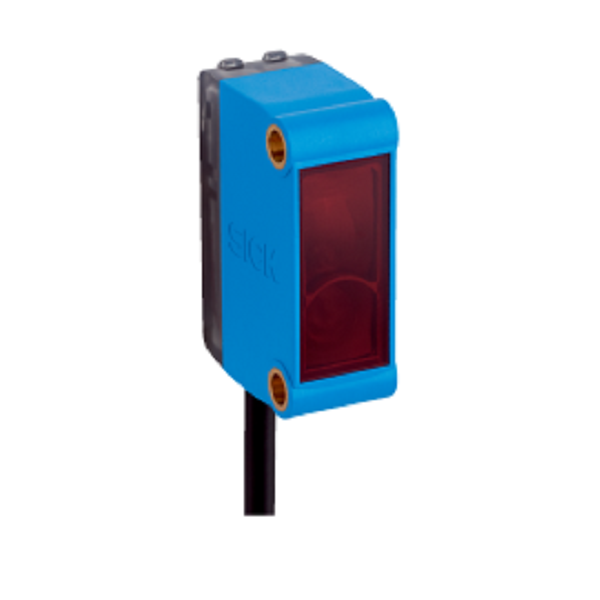

Miniature photoelectric sensors G6
Functional principle : Photoelectric retro-reflective sensor
Functional principle detail : Dual lens
Sensing range max. : ≤ 7.2 m 1)
Sensing range : ≤ 6 m 1)
Polarisation filters : Yes
Emitted beam
Light source : PinPoint LED 2)
Type of light : Visible red light
Light spot size (distance) : Ø 8 mm (350 mm)
Key LED figures
Wave length : 650 nm
Adjustment : None
Special features : Cable with connector M8, 4-pin, with knurled nuts
1) Reflector PL80A.
2) Average service life: 100,000 h at TU = +25 °C.
Supply voltage UB : 10 V DC … 30 V DC 1)
Ripple : ± 10 % 2)
Current consumption : 30 mA 3)
Protection class : III
Digital output
Type : PNP
Signal voltage PNP HIGH/LOW : VS – (≤ 3 V) / approx. 0 V
Output current Imax. : ≤ 100 mA 4)
Response time : < 625 µs 5) Switching frequency : 1,000 Hz 6) Switching mode : Light/dark switching Switching mode selector : Selectable via light/dark selector Circuit protection : A 7) | B 8) | D 9) 1) Limit values when operated in short-circuit protected network: max. 8 A. 2) May not exceed or fall below Uv tolerances. 3) Without load. 4) At Uv > 24 V, IA max. = 50 mA.
5) Signal transit time with resistive load.
6) With light/dark ratio 1:1.
7) A = VS connections reverse-polarity protected.
8) B = inputs and output reverse-polarity protected.
9) D = outputs overcurrent and short-circuit protected.
Housing : Rectangular
Dimensions (W x H x D) : 12 mm x 31.5 mm x 21 mm
Connection : Cable with connector M8, 4-pin, with knurled nuts, 1 m 1)
Connection detail
Conductor size : 0.14 mm²
Length of cable (L) : 1 m 1)
Material
Housing : Plastic, ABS/PC
Front screen : Plastic, PMMA
Cable : PUR
Weight : 60 g
1) Do not bend below 0 °C.
Enclosure rating : IP67
Ambient operating temperature : –30 °C … +55 °C 1)
Ambient temperature, storage : –40 °C … +70 °C
UL File No. : NRKH.E348498 & NRKH7.E348498
1) Temperature stability following adjustment +/-10 °C.
Shipping Weight : 1kg
