Estimated Lead Time : 4 – 6 weeks.

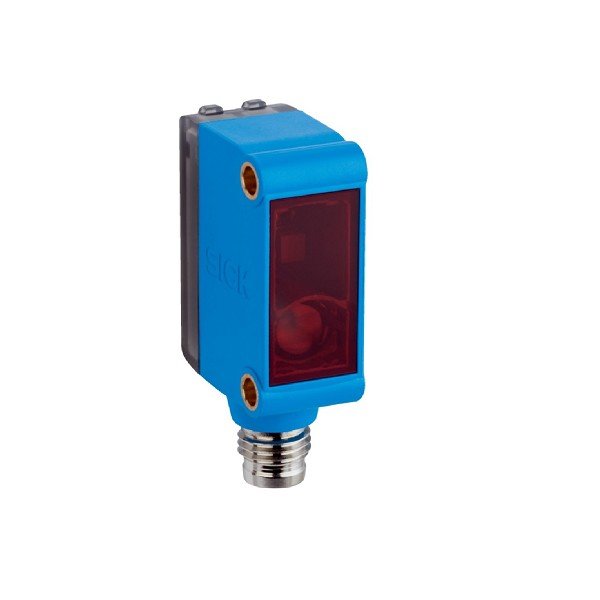

Manufacturer : SICK Sensors
Part Number : 1060810
Functional principle : Photoelectric retro-reflective sensor
Functional principle detail : Dual Lens
Dimensions (W x H x D) : 12 mm x 31.5 mm x 21 mm
Housing design ( light emission) : Rectangular
Sensing range max. : = 6 m
Sensing range : = 5 m
Type of light : Visible red light
Light source : PinPoint LED 2)
Light spot size (distance) : Ø 8 mm (350 mm)
Wave length : 650 nm
Adjustment : Potentiometer, 270°
Special applications Detecting transparent objects
Current consumption : 30 mA 3)
Switching mode selector : Selectable via light/dark selector
Signal voltage PNP HIGH/LOW : VS – (= 3 V) / approx. 0 V
Switching output : PNP
Switching mode : Dark switching/Light switching
Output current Imax. : = 100 mA
Response time : < 625 µs 5)
Switching Frequency : 1,000 Hz
Attenuation along light beam : = 20 %
Connection type : Male connector M8, 4-pin
Circuit protection :A 7) B 8) D 9)
Protection class : III
Housing material : Plastic, ABS/PC/POM
Optics material : Plastic, PMMA
Cable material : PVC
Length of cable (L) : 2 m 1)
Enclosure rating : IP67
Items supplied : Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250
Ambient operating temperature –25 °C ... +55 °C
Ambient temperature, storage –40 °C ... +70 °C
Weight : 20g
Shipping Weight : 1.0 kg
