Estimated Lead Time: 6 – 8 Weeks.

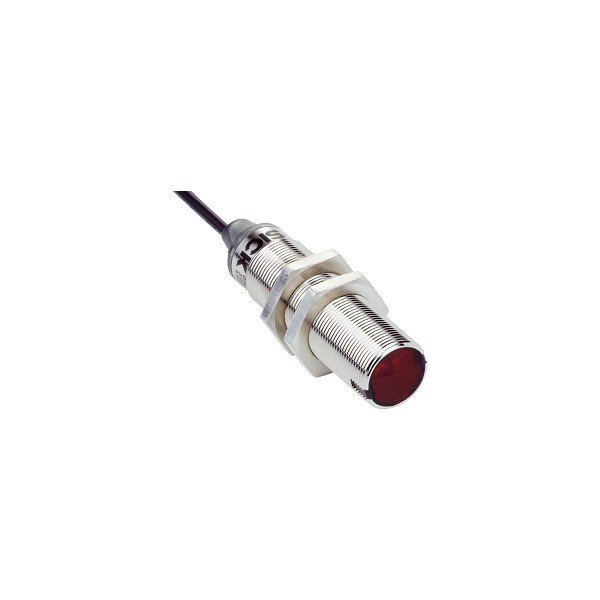

Manufacturer: SICK Sensors
Part Number : GRTE18-N1142
Functional principle : Photoelectric proximity sensor
Functional principle detail : Energetic
Dimensions (W x H x D) : 18 mm x 18 mm x 71.5 mm
Housing design (light emission) : Cylindrical
Thread diameter (housing) : M18 x 1
Optical axis : Axial
Sensing range max. : 5 mm … 550 mm 1)
Sensing range : 10 mm … 400 mm 1)
Type of light : Visible red light
Light source : PinPoint LED 2)
Light spot size (distance) : Ø 9 mm (400 mm)
Wave length : 650 nm
Adjustment : Potentiometer
Indication :
LED green :
Operating indicator
Static on: power on
LED yellow :
Status of received light beam
Static on: object present
Static off: object not present
Supply voltage UB : 10 V DC … 30 V DC 1)
Ripple : < 5 Vpp 2) Current consumption : 30 mA Switching output : NPN Output function : Complementary Switching mode : Light/dark switching Signal voltage NPN HIGH/LOW : Approx. VS / ≤ 3 V Output current Imax. : ≤ 100 mA 3) Response time : < 1,000 µs 4) Switching frequency : 500 Hz 5) Connection type : Cable, 4-wire, 2 m 6) Cable material : PVC Circuit protection : A 7) B 8) D 9) Protection class : III Housing material : Metal, Nickel-plated brass and ABS Optics material : Plastic, PMMA Enclosure rating : IP67 Items supplied : Fastening nuts (2 x) Weight : 86 g Shipping Weight: 1 kg
