Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

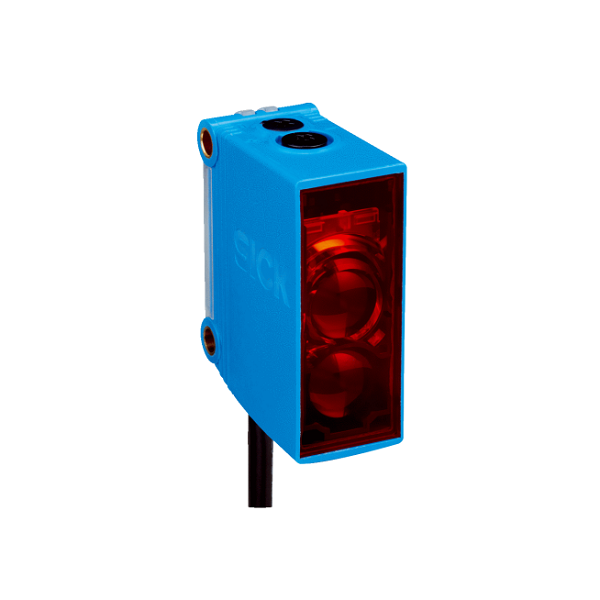

Part Number : GTB10-N1212
Functional principle : Photoelectric proximity sensor
Functional principle detail : Background suppression
Dimensions (W x H x D) : 20 mm x 50 mm x 39 mm
Housing design (light emission) : Rectangular
Sensing range max. : 20 mm … 950 mm
Type of light : Visible red light
Light source : PinPoint LED
Light spot size (distance) : Ø 8 mm (700 mm)
Wave length : 625 nm
Adjustment : Potentiometer, 5 turns
Ripple : < 5 Vpp Current consumption : 20 mA Switching output : NPN Switching mode : Light/dark switching Switching mode selector : Selectable via light/dark selector Output current Imax. : ≤ 100 mA Response time : ≤ 500 µs Switching frequency : 1,000 Hz Connection type : Cable, 3-wire, 2 m Cable material : PVC Conductor cross section : 0.14 mm² Circuit protection : A B C D Protection class : III Weight : 90 g Shipping Weight : 1.1 kg
