Estimated Lead Time : 8 – 10 Weeks
Manufacturer : BECKHOFF
Part Number : KL3204

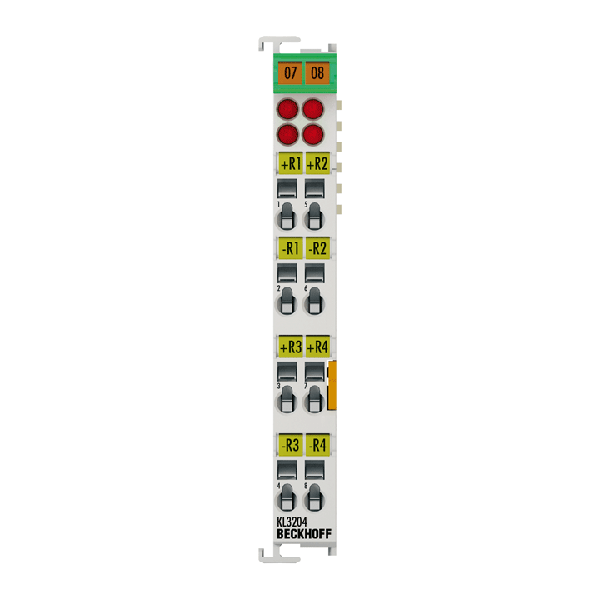

Bus Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit
Number of inputs : 4
Power supply : via the K-bus
Technology : 2-wire
Sensor types : Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…1.2/5 kΩ)
Measuring range : -200…+850°C (Pt sensors); -60…+250°C (Ni sensors)
Connection method : 2-wire
Conversion time : ~ 250 ms
Measuring current : typ. 0.5 mA
Resolution : 0.1°C per digit
Measurement error/uncertainty : < ±1°C Electrical isolation : 500 V (K-bus/signal voltage) Operating temperature : -25…+60°C Storage temperature : -40…+85°C Relative humidity : 95%, no condensation Weight : approx. 70 g Shipping Weight : 1 Kg
