Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF

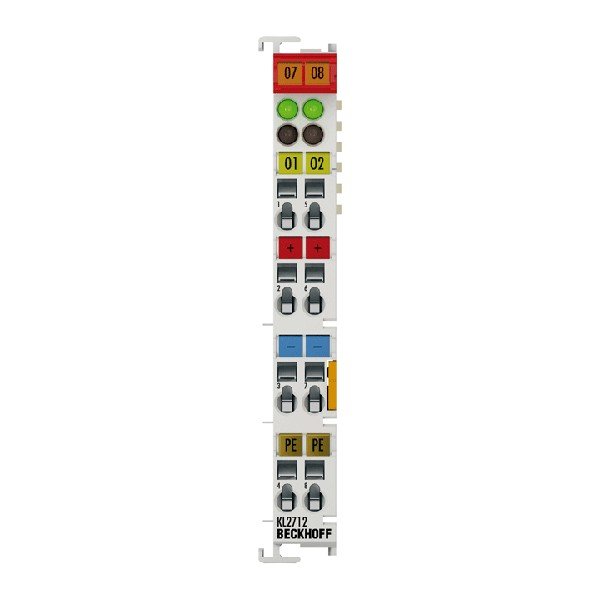

Part Number : KS2712
Connection technology : 4-wire
Number of outputs : 2 x make contacts
Nominal voltage : 12…230 V AC
Load type : ohmic, inductive
Max. output current : 2 x 0.025…0.5 A per channel
Rotating field frequency : 47…63 Hz
Surge voltage protection : > 275 V AC
Peak current : 40 A (16 ms), 1.5 A (30 s)
Contact resistance : –
Switch-on time : 0.1 ms
Switch-off time : T/2
Residual voltage : max. 1.5 V
Electrical isolation : 500 V (K-bus/field voltage), 3750 V AC (1 min.)
Leakage current (OFF state) : typ. 0.8 mA, max. 1.5 mA
Current consumption power contacts : only leakage and load current
Current consumption K-bus : typ. 10 mA
Bit width in the process image : 2 outputs
Configuration : no address or configuration setting
Special features : reverse motors (blinds)
Operating/storage temperature : 0…+55 °C/-25…+85 °C
Relative humidity : 95 %, no condensation
Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. : IP20/variable
Pluggable wiring : for all KSxxxx Bus Terminals
Approvals/markings : CE, UL, ATEX, DNV GL
Ex marking : II 3 G Ex nA IIC T4 Gc
Design form : terminal housing with pluggable wiring level
Material : polycarbonate
Installation : on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of : double slot and key connection
Marking : labeling of the BZxxx series
Wiring : spring actuation by screwdriver
Connection cross-section : s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG : s*:AWG 28…16, st*: AWG 28…16, f*: AWG 26…16
Stripping length : 9…10 mm
Current load power contacts : Imax: 10 A
Dimensions (L x W X H) : 6.8 cm x 1.2 cm x 10.0 cm
Weight : 0.055kg
Shipping Weight : 2 Kg
