Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF

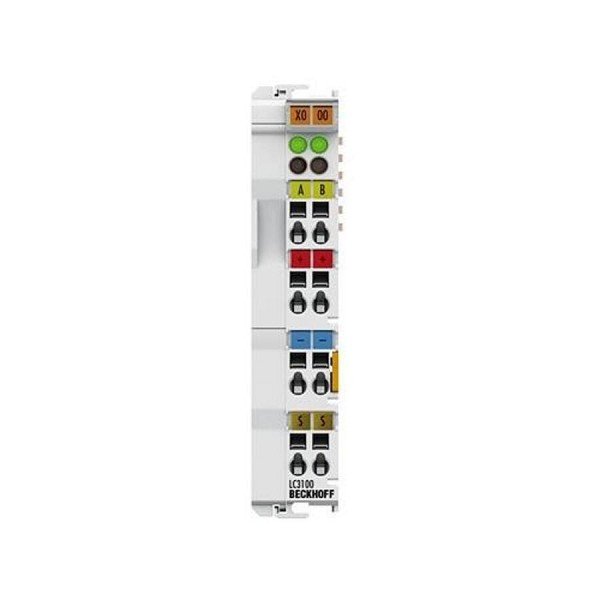

Product No : LC3100
Product Type : Bus Coupler
Number of Bus Terminals : 64
Max. number of bytes fieldbus : 64 byte input and 64 byte output
Data transfer rates : automatic detection up to 12 Mbaud
Bus interface : connection via Bus Terminal
Power supply 24 V DC (-15 %/+20 %)
Input current : 70 mA + (total K-bus current)/4, 500 mA max.
Current supply K-bus : 500 mA
Power contacts : max. 24 V DC/max. 10 A
Electrical isolation : between power supply/field bus, none between power supply/power contacts
Connection method : directly to spring-loaded terminals
Dimensions (W x H x D) : similar to the Bus Terminal housing, width 21 mm
Weight : approx. 100 g
Operating/storage temperature : 0…+55 °C/-25…+85 °C
Relative humidity : 95 %, no condensation
Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos. : IP 20/variable
Approvals : CE, UL, Ex
Weight : 0.1kg
Shipping weight : 1.5kg
