Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF
Product No : LC5200

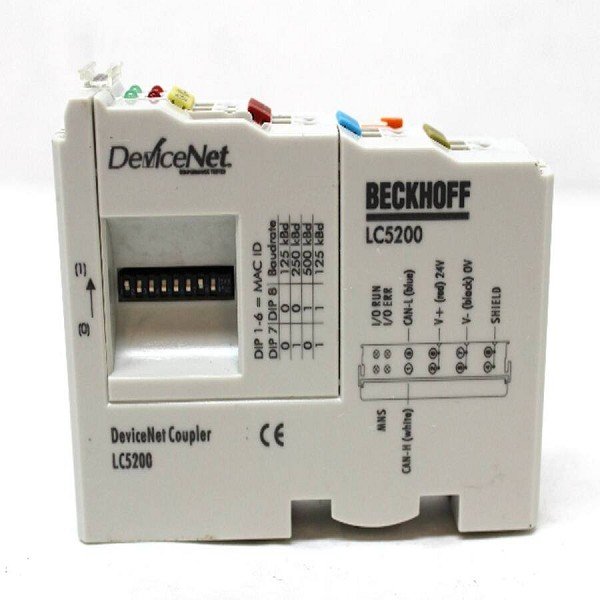

Product Type : DeviceNet “Low Cost” Bus Coupler
Number of Bus Terminals : 64
Max. number of bytes fieldbus : 32 byte input and 32 byte output
Bus interface : connection via Bus Terminal
Power supply : 24 V DC (-15 %/+20 %), through bus cable 11…25 V (conforms to DeviceNet specification)
Current supply K-bus : 500 mA
Power contacts : 24 V DC max./10 A max.
Electrical isolation : none between power supply/fieldbus/power contacts
Connection method : directly to spring-loaded terminals
Dimensions (W x H x D) : similar to the Bus Terminal housing, width 2.1 cm
Operating/storage temperature : 0…+55 °C/-25…+85 °C
Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos. : IP 20/variable
Approvals : CE, UL, Ex
Weight : 0.1kg
Shipping weight : 1.5kg
