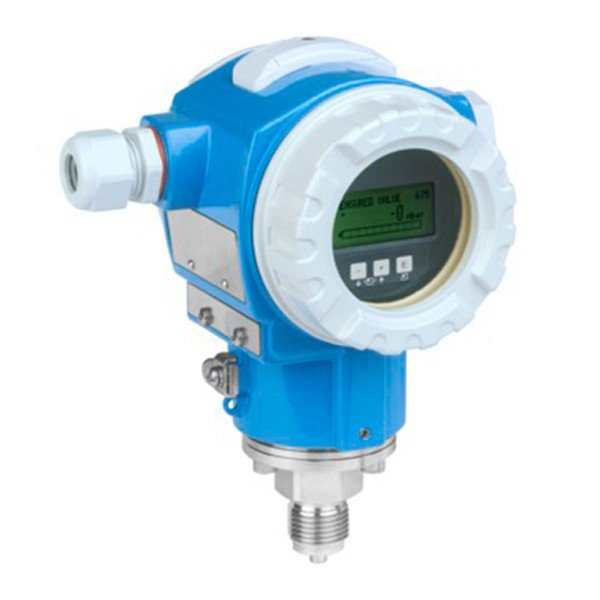

PMP71-AAA-1U21-RHAA-U Endress+Hauser Digital pressure transmitter with welded metal sensor for measurement in gases, steam or liquids

PMP71-AAA-1U21-RHAA-U Endress+Hauser Digital pressure transmitter with welded metal sensor for measurement in gases, steam or liquids

Original price was: $1,864.00.Current price is: $1,304.80.

SKU: PMP71-AAA-1U21-RHAA-U Category:
Guaranteed Safe Checkout

Estimated Lead Time: 4-6 Weeks

Manufacturer: Endress+Hauser

PMP71-AAA-1U21-RHAA-U

Approval : A-For non-hazardous areas

Output : Operation:A-4 to 20 mA HART, operation outside, LCD

Housing : Cable entry; Protection:A-Aluminum T14 housing, optional display on the side, IP 66/67/NEMA 4X/ 6P, Gland M 20×1.5

Sensor range : Sensor over pressure limit (= OPL):1U
Sensors for gauge pressure
Measurement limits: –100 % (–1 bar) to +100 % of sensor nominal value
Sensor rated value (URL) : 100 bar/10 MPa/1500 psi g
OPL (over pressure limit) : 400 bar/40 MPa/6000 psi g

Calibration : Unit: 2-Sensor range; kPa/MPa

Material of the process isolating diaphragm: 1-AISI 316L

Process connection : Material: RH-Thread ANSI 1/2 FNPT, AISI 316L (CRN)

Fill fluid : A-Silicone oil

Additional option 1 : A-Not selected

Additional option 2 : U-Mounting bracket for wall/pipe, AISI 304

Shipping Weight : 3 Kg
Download PDF File PMP71-AAA-1U21-RHAA-U
