Estimated Lead Time : 1 – 2 weeks.
Manufacturer : Honeywell

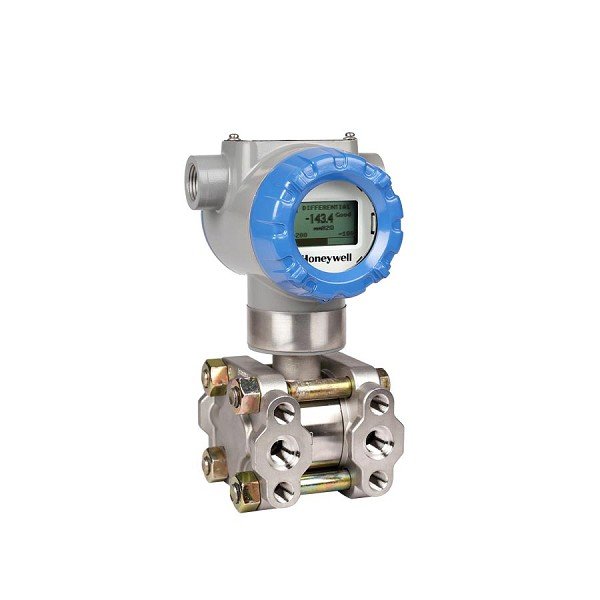

Product No. : STD770-E1HS4A-1-C-BHC-13S-B-31A0
Product type : Differential Pressure Transmitter
E – Process Wetted Heads : 316 Stainless Steel
Diaphragm Materials : 316L Stainless Steel
1 – Fill fluid : Silicone Oil 200
H – Process Connection : 1/2″ NPT female Materials to Match Head & Head Bolt Materials Selections
S – Bolt/Nut Materials : 316 SS
4 – Head Type : Dual Ended
Vent Type : Standard Vent
Location : End
Vent Material : Matches Head Material
A – Gasket Material : Teflon® or PTFE (Glass Filled)
1 – Head/Connect Orientation : Standard High Side Left, Low Side Right2 / Std Head Orientation
C – Approvals : ATEX Explosion proof, Intrinsically Safe & Non-incendive
B – Electronic Housing Material & Connection Type
Material : Polyester Powder Coated Aluminum
Connection : M20
Lighting Protection : None
H – Output/Protocol : Analog Output 4-20mA dc, Digital Protocol HART Protocol
C – Customer Interface Selections : Indicator Basic, Ext Zero, Span & Config Buttons yes, Languages English
1 – Application software : Standard Diagnostics
3 – Output Limit, Failsafe & Write Protect Settings
Write Protect : Enabled
Fail Mode : High> 21.0mAdc
High & Low Output limits : Honeywell Std (3.8 – 20.8 mAdc)
S – General Configuration : Factory standard
B – Accuracy and calibration : Accuracy Standard, Calibrated range custom, Calibration Qty Single calibration
3 – Mounting Bracket : Mounting type Angle Bracket, Material 316 SS
1 – Customer Tag : One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)
A0 – Unassembled Conduit Plugs & Adapters : No Conduit Plugs or Adapters Required
Shipping weight : 10 Kg
