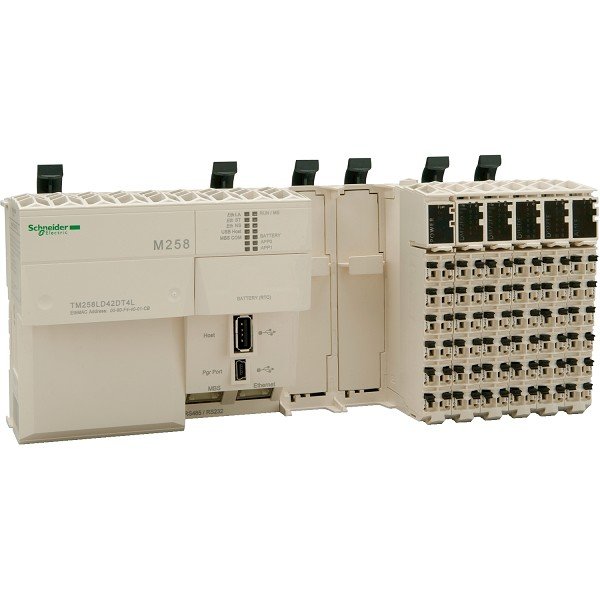

TM258LD42DT4L Schneider Electric compact base M258 – 42 + 4 I/O – 24 V DC

Estimated Lead Time : 4 – 6 Weeks.

Manufacturer : Schneider Electric

compact base M258 – 42 + 4 I/O – 24 V DC

Main

Range of product : Modicon M258

Product or component type : Logic controller

Product specific application : –

Discrete I/O number : 42

Analogue input number : 4

Discrete output number

12 output

4 fast output

Complementary

Discrete input number

10 for fast input

12 for input

4 for regular input

Discrete input logic

Sink for fast input

Sink for regular input

Source for input

Discrete input voltage : 24 V

Discrete input voltage type : DC

Analogue input type

Current: 0…20 mA

Current: 4…20 mA

Voltage: +/- 10 V

Analogue input resolution : 12 bits

Voltage state 1 guaranteed

>= 15 V for fast input

>= 15 V for fast output

>= 15 V for regular input

Voltage state 0 guaranteed

<= 5 V for fast input <= 5 V for fast output <= 5 V for regular input Discrete input current 4 mA for fast input 4 mA for regular input Input impedance 6 kOhm for fast input 6 kOhm for regular input Configurable filtering time 0 ms for fast input/regular input and fast output 1.5 ms for fast input/regular input and fast output 12 ms for fast input/regular input and fast output 4 ms for fast input/regular input and fast output Anti bounce filtering : 2 µs...4 ms configurable fast input/regular input and fast output Maximum cable distance between devices <30 m for fast input <30 m for fast output <30 m for regular input Isolation between channels and internal logic : 500 Vrms AC Isolation between channels : None Discrete output logic : Source Discrete output voltage : 24 V DC Output voltage limits : 19.2...28.8 V Discrete output current : 4 mA for fast output [Us] rated supply voltage 24 V DC for embedded expert modules power 24 V DC for I/O power segment 24 V DC for main supply Supply voltage limits : 20.4…28.8 V [In] rated current 0.04 A for embedded expert modules power 10 A for I/O power segment 0.31 A for main supply Peak current 100 kA (duration = <= 70 s) for main supply 25 kA (duration = <= 500 s) for I/O power segment 50 kA (duration = <= 150 s) for embedded expert modules power 1.2 A (duration = > 70 s) for main supply

Power consumption in W : 14.14 W

Memory description

Flash 128 MB

Internal RAM 64 MB

Realtime clock

Without any user calibration clock, clock drift < 30 s/month at 25 °C With user calibration clock, clock drift <= 6 s/month Data backed up : Variables of type retain and retain persistent CR2477M Renata, 1.5 years autonomy Integrated connection type 1 isolated serial link with female RJ45 connectorModbus with master/slave RTU/ASCII or character mode ASCII, physical interface: RS232/RS485, transmission rate: 300...115200 bps 1 isolated serial link with female RJ45 connectorEthernet Modbus TCP/IP with slave, physical interface: 10BASE-T/100BASE-TX 1 isolated serial link with mini B USB connector, transmission rate: 480 Mbit/s 1 isolated serial link with USB type A connector, transmission rate: 480 Mbit/s 2 free slots PCI Counting input number : 8 counting input(s) at 200 kHz Local signalling 1 LED per channel for I/O state 1 LED for CAN0 STS 1 LED for MBS COM 1 LED green/red for APP0 1 LED green/red for APP1 1 LED green/red for Eth NS (Ethernet network status) 1 LED green/red for Eth ST (Ethernet status) 1 LED green/red for RUN/MS (module status) 1 LED green/red for USB host 1 LED green/yellow for Eth LA (Ethernet activity) 1 LED red for BATT (battery status) marking : CE Mounting support : Symmetrical DIN rail Width : 237.5 mm Height : 99 mm Depth : 85 mm Product weight : 0.77 kg Environment standards IEC 61131-2 CSA C22.2 No 213 CSA C22.2 No 142 UL 508 Product certifications CULus CSA GOST-R C-Tick Ambient air temperature for operation 0…55 °C without derating (horizontal installation) 0…60 °C with derating factor (horizontal installation) 0…50 °C (vertical installation) Ambient air temperature for storage : -25…70 °C Relative humidity : 5…95 % without condensation IP degree of protection : IP20 conforming to IEC 61131-2 Pollution degree : 2 conforming to IEC 60664 Operating altitude : 0...2000 m Storage altitude : 0…3000 m Vibration resistance 1 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on DIN rail Shock resistance : 15 gn for 11 ms Resistance to electrostatic discharge 4 kV on contact conforming to EN/IEC 61000-4-2 8 kV in air conforming to EN/IEC 61000-4-2 Resistance to electromagnetic fields 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3 10 V/m 80...2000 MHz conforming to EN/IEC 61000-4-3 Resistance to fast transients 1 kV (I/O) conforming to EN/IEC 61000-4-4 1 kV (shielded cable) conforming to EN/IEC 61000-4-4 2 kV (power lines) conforming to EN/IEC 61000-4-4 Surge withstand 0.5 kV differential mode conforming to EN/IEC 61000-4-5 1 kV common mode conforming to EN/IEC 61000-4-5 Disturbance radiated/conducted : CISPR 11 Shipping Weight : 1.5 Kg
