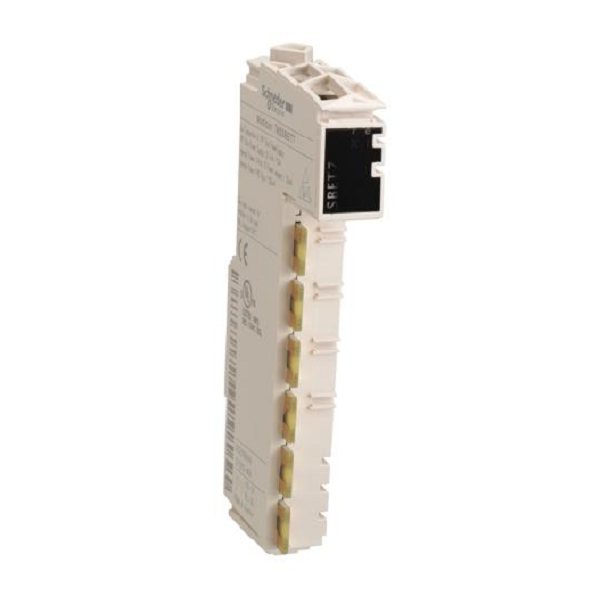

TM5SBET7 Schneider Electric Remote transmitter module, Modicon TM5, Communication between I/O IP20 and IP67

Estimated Lead Time : 4 – 6 weeks.

Manufacturer : Schneider Electric

Remote transmitter module, Modicon TM5, Communication between I/O IP20 and IP67

Range of product : Modicon TM5

Product or component type :Remote transmitter module

Product specific application :Communication between remote I/O

Complementary

Range compatibility :Modicon M258 | Modicon LMC058

Product compatibility :Motion controller | Logic controller

[Us] rated supply voltage :24 V DC – 15…20 %

Colour :White

Bus length :2500 m

Maximum cable distance between devices :100 m

Current consumption :25 mA at 24 V DC input/output | 100 mA at 5 V DC bus

Maximum power dissipation in W :1.1 W

Local signalling :1 LED green for power supply | 1 LED red for power supply | 1 LED yellow for communication data bus

Supply :Included for IP67 extension modules

Marking :CE

Product weight :0.025 kg

Environment

Standards :UL 508 | CSA C22.2 No 142 | IEC 61131-2 | CSA C22.2 No 213

Product certifications :CSA | GOST-R | cULus | C-Tick

Ambient air temperature for operation :0…50 °C (vertical installation) | 0…55 °C without derating (horizontal installation) | 0…60 °C with derating factor (horizontal installation)

Ambient air temperature for storage :-25…70 °C

Relative humidity :5…95 % without condensation

IP degree of protection :IP20 conforming to IEC 61131-2 | IP67

Pollution degree :2 conforming to IEC 60664

Operating altitude :0…2000 m

Storage altitude :0…3000 m

Vibration resistance :1 gn at 8.4…150 Hz on DIN rail | 3.5 mm at 5…8.4 Hz on DIN rail

Shock resistance :15 gn for 11 ms

Resistance to electrostatic discharge :4 kV on contact conforming to EN/IEC 61000-4-2 | 8 kV in air conforming to EN/IEC 61000-4-2

Resistance to electromagnetic fields :1 V/m 2…2.7 GHz conforming to EN/IEC 61000-4-3 | 10 V/m 80…2000 MHz conforming to EN/IEC 61000-4-3

Resistance to fast transients :1 kV (I/O) conforming to EN/IEC 61000-4-4 | 1 kV (shielded cable) conforming to EN/IEC 61000-4-4 | 2 kV (power lines) conforming to EN/IEC 61000-4-4

Surge withstand :0.5 kV differential mode conforming to EN/IEC 61000-4-5 | 1 kV common mode conforming to EN/IEC 61000-4-5

Electromagnetic compatibility :EN/IEC 61000-4-6

Disturbance radiated/conducted :CISPR 11

Packing Units

Unit Type of Package 1 :PCE

Number of Units in Package 1 :1

Package 1 Height :2.000 cm

Package 1 Width :6.000 cm

Package 1 Length :10.500 cm

Package 1 Weight : 50.000 g

Unit Type of Package 2 :S02

Number of Units in Package 2 :97

Package 2 Height :15.000 cm

Package 2 Width :30.000 cm

Package 2 Length :40.000 cm

Package 2 Weight :5.177 kg

Shipping weight : 1 Kg
