Estimated Lead Time : 4 – 6 Weeks.
Manufacturer : Schneider Electric
Range of product : Modicon TM5

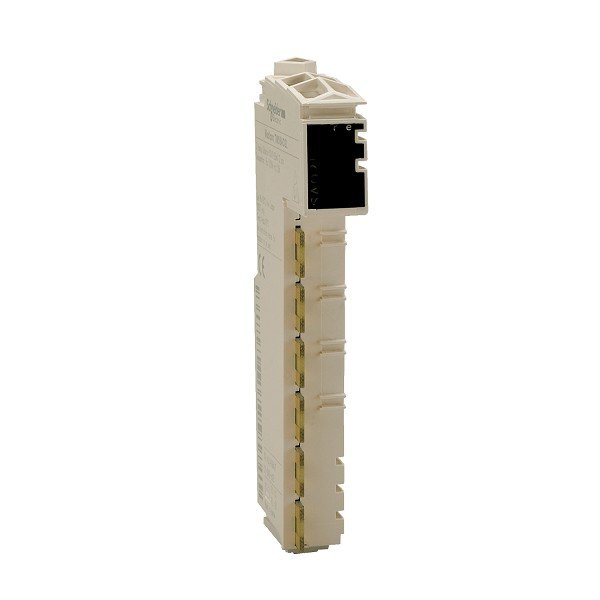

Product or component type : Mixed I/O module
Range compatibility :
Modicon LMC058
Modicon M258
Product compatibility :
Motion controller
Logic controller
Discrete input number : 4
Discrete input voltage : 24 V
Discrete input voltage type : DC
Input voltage limits : 20.4…28.8 V
Discrete input logic : Sink
Discrete input current : 3.3 mA
Voltage state 0 guaranteed : <= 5 V Voltage state 1 guaranteed : >= 15 V
Input filtering :
<= 2 µs hardware 1 ms by default <= 25 ms configurable by software Analogue input number : 1 Analogue input type : Voltage, input range: +/- 10 V Current, input range: 0...20 mA/4...20 mA Analogue input resolution : 12 bits + sign for voltage 12 bits for current Common mode rejection : 70 dB DC for analog input 70 dB 50 Hz for analog input Discrete output number : 2 Discrete output type : Transistor Output voltage : 24 V DC Output voltage limits : 20.4...28.8 V Discrete output logic : Source Discrete output current : <= 0.5 A per output <= 1 A Peak output current : 14 A Maximum leakage current : 5 µA (when switched off) for digital output Switching frequency : 100 Hz, resistive for digital output Analogue output number : 1 Analogue output type : Voltage: +/- 10 V Current: 0...20 mA Conversion time : 300 µs for analog output Analogue output resolution : 12 bits + sign, +/- 10 V 12 bits, 0...20 mA Measurement resolution : 2.441 mV, +/- 10 V, +/- 10 V 4.883 µA, 0...20 mA/4...20 mA, 0...20 mA Colour : White Response time : <= 250 µs from state 0 to state 1 for digital output <= 250 µs from state 1 to state 0 for digital output 1 ms for analog output Input impedance : 7.18 kOhm digital >= 1 MOhm analog, +/- 10 V
Minimum output impedance :
1 kOhm +/- 10 V 0…55 °C
10 kOhm +/- 10 V 55…60 °C
Load impedance ohmic :
<= 400 Ohm (output: 0...20 mA) at 0…55 °C <= 300 Ohm (output: 0...20 mA) at 55…60 °C <= 300 Ohm (input: 0...20 mA/4...20 mA) Sampling duration : 300 µs for analog input Measurement error : < 0.08 % of full scale (input: +/- 10 V) at 25 °C < 0.08 % of full scale (input: 0...20 mA/4...20 mA) at 25 °C < 0.15 % of full scale (output: +/- 10 V) at 25 °C < 0.15 % of full scale (output: 0...20 mA) at 25 °C Temperature coefficient : +/- 0.009 %FS/°C (input: 0...20 mA/4...20 mA) +/-0.006 %FS/°C (input: +/- 10 V) +/- 0.02 %FS/°C (output: 0...20 mA) +/- 0.02 %FS/°C (output: +/- 10 V) Non-linearity : +/- 0.02 %FS (input: 0...20 mA/4...20 mA) +/- 0.02 %FS (input: +/- 10 V) +/- 0.1 %FS (output: 0...20 mA) +/- 0.1 %FS (output: +/- 10 V) Type of cable : Shielded cable Isolation : No insulation between channels 500 Vrms AC insulation between channel and bus Supply : Internal [Us] rated supply voltage : 24 V DC -15...20 % Local signalling : 1 LED (green) for power supply (ON) 1 LED (red) for power supply (OFF) 4 LEDs (green) for digital input status 2 LEDs (orange) for digital output status 1 LED (orange) 1 LED (green) Wiring mode : 1 wire for digital input/output Current consumption : 2 mA at 5 V DC bus 73 mA at 24 V DC inputs/outputs Maximum power dissipation in W : 1.75 W Protection type : Against reverse polarity for digital output Against short-circuits for digital output Thermal overload protection for digital output Against short-circuits for analog output Marking : CE Product weight : 0.025 kg Shipping weight : 1 kg
