Estimated Lead Time : 3 – 4 Weeks
Manufacturer : ABB
Part Number : TTF300.E1.C.1.H.BF-CS….K2…T0…Z2.C07.M5

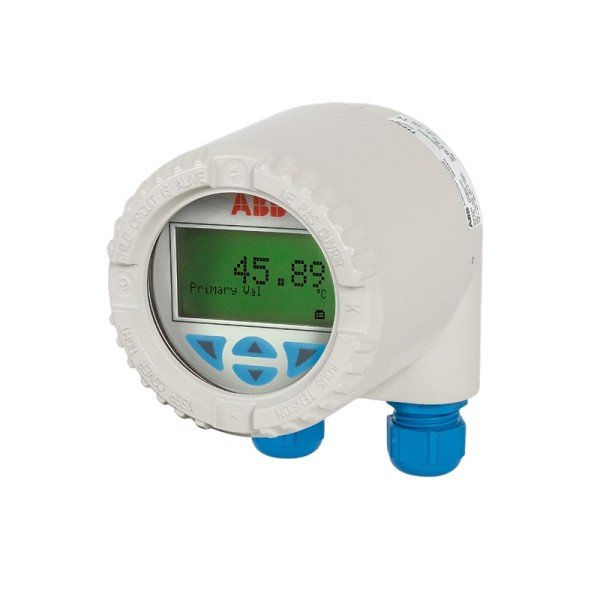

TTF300 | Field-Mount Temperature Transmitter
Base model : TTF300 = TTF300 Field Mounted Temperature Transmitter, Pt100 (RTD), thermocouples, electrical isolation
Explosion Protection : E1 = ATEX Intrinsic Safety type of protection: Zone 1 (0): II 2 (1) G Ex [ia IIC Ga] ib IIC T6…T1 Gb, Zone 1 (20): II 2 G (1D) Ex [ia IIIC Da] ib IIC T6…T1 Gb
Housing / Display : C = Single-compartment housing (aluminium) / With LCD-display HMI
Cable Entry : 1 = Thread 2 × M20 × 1.5
Communication Protocol : H = HART®, programmable, output signal 4 to 20 mA, dual input
Configuration : BF = Customer-specific configuration, except user curve
Declarations and Certificates : CS = SIL2 – Declaration of Conformity
Mounting Bracket : K2 = Wall mounting / 2 in pipe mounting bracket (stainless steel)
Device Identification Plate : T0 = Stainless steel
Customer-specific Versions : Z2 = Hardware 02.00
HART version : C07 = HART 7
Documentation Language : M5 = English
Weight : 1.25 kg (2.75 lb)
Shipping Weight : 2 Kg
