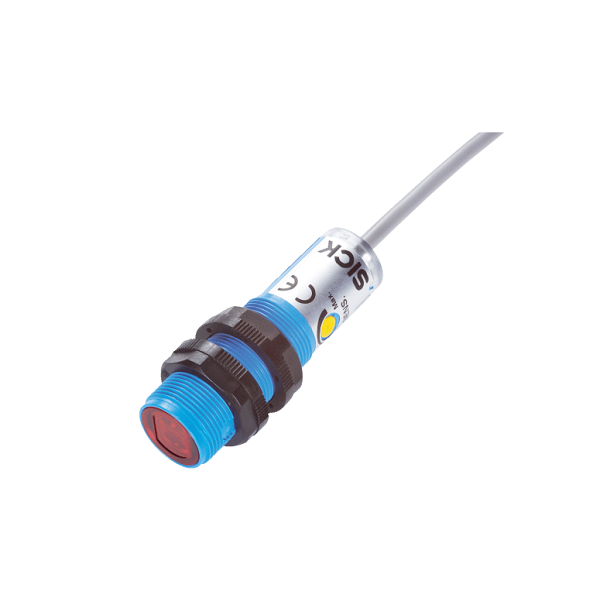

Name: VTF180-2N41117 V180-2 SICK Sensors CYLINDRICAL PHOTOELECTRIC SENSORS , Part Number : 6037477
SKU: VTF180-2N41117 PHO
Availability: InStock

VTF180-2N41117 V180-2 SICK Sensors CYLINDRICAL PHOTOELECTRIC SENSORS , Part Number : 6037477

10 in stock

SKU: VTF180-2N41117 PHO Category: SICK

Delivery: It is expected to be between 5 and 7 days

Returns: 90 days returns. Buyer pays for return shipping.

Warranty: New products 12 months warranty, refurbished products 6 months warranty.

Shipping: Free shipping on orders over $200.

Freight:UPS USPS FedEx DHL

Guaranteed Safe Checkout

Shop with confidence

Automation-buy Money Back Guarantee

Get the item you ordered or your money back. Learn more

Estimated Lead Time : 4 – 6 weeks.

Manufacturer : SICK Sensors

Part Number : HL18T-P1G3BB

Functional principle : Photoelectric proximity sensor

Functional principle detail : Background blanking

Dimensions (W x H x D) : 18 mm x 18 mm x 62.5 mm

Housing design (light emission) : Cylindrical

Housing length : 62.5 mm

Thread diameter (housing) : M18 x 1

Optical axis : Axial

Sensing range max. : 1 mm … 140 mm

Sensing range : 1 mm … 100 mm

Type of light : Visible red light

Light source : LED

Light spot size (distance) : Ø 8 mm (100 mm)

Wave length : 645 nm

Adjustment : Potentiometer, 270° (Sensing range)

Special feature : Focused optics

Ripple : ± 10 %

Current consumption : 30 mA

Switching output : NPN

Switching mode : Light/dark switching

Switching mode selector : Selectable via L/D control cable

Signal voltage NPN HIGH/LOW : Approx. VS / < 1.8 V Output current Imax. : ≤ 100 mA Response time : ≤ 0.5 ms Switching frequency : 1,000 Hz Connection type : Cable, 4-wire, 2 m Cable material : PVC Conductor cross section : 0.18 mm² Cable diameter : Ø 3.8 mm Circuit protection : A , B , D Protection class : III Weight : 62 g Shipping Weight : 1.1 kg
