Estimated Lead Time: 4 – 6 Weeks.
Manufacturer: SICK Sensors
Type Part no.: WE100L-F1131
Part Number: 6030714

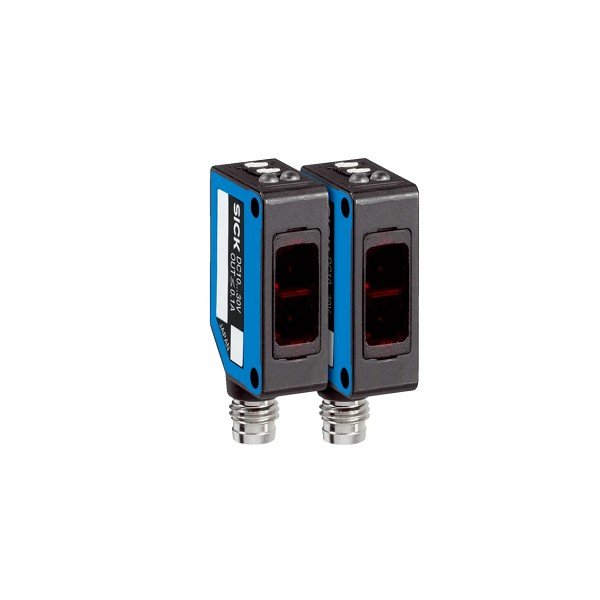

Description: Through-beam photoelectric sensor
Dimensions (W x H x D): 11 mm x 31 mm x 20 mm
Housing design (light emission): Rectangular
Sensing range max.: 0 m … 35 m
Sensing range: 0 m … 30 m
Type of light: Visible red light
Light source: Laser
Light spot size (distance): Ø 30 mm (30 m)
Wave length: 650 nm
Laser class: 1
Adjustment: Potentiometer, 270°
Special applications: Detecting small objects
Supply voltage UB: 10 V DC … 30 V DC
Ripple: ± 10%
Power consumption, sender: = 15 mA
Power consumption, receiver: = 20 mA
Switching output: PNP
Switching mode: Light/dark switching
Switching mode selector: Selectable via light/dark rotary switch
Signal voltage PNP HIGH/LOW: UV – 1.8 V / ca. 0 V
Output current Imax.: = 100 mA
Response time: < 0.25 ms Switching frequency: 2,000 Hz Connection type: Cable, 3-wire, 2 m Cable material: PVC Conductor cross section: 0.18 mm² Circuit protection: A (VS connections reverse-polarity protected), B (inputs and output reverse-polarity protected), D (outputs overcurrent and short-circuit protected) Weight: 50 g Shipping weight: 1 kg
