Estimated Lead Time : 4 – 6 weeks.
Manufacturer : SICK Sensors

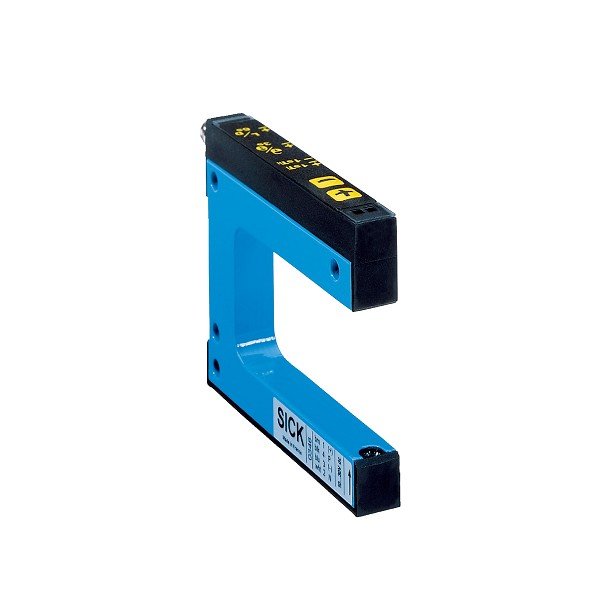

Part Number : WF50-95B416
Functional principle : Optical detection principle
Dimensions (W x H x D) : 10 mm x 80 mm x 110 mm
Fork width : 50 mm
Fork depth : 95 mm
Minimum detectable object (MDO) : 0.2 mm
Adjustment : Plus/minus button (Teach-in, sensitivity, light/dark switching, key lock)
Teach-in mode : 2-point teach-in
Output function : Light/darkswitching, selectable via button
Stability of response time : ± 20 µs
Jitter : 40 µs
Switching output : PNP/NPN
Switching output (voltage) :
PNP: HIGH = UV = 2 V / LOW approx. 0 V
NPN: HIGH = approx. UV / LOW = 2 V
Switching mode : Light/dark switching
Output current Imax. : 100 mA
Connection type : Male connector M8, 4-pin
Circuit protection :
UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
Housing material : Aluminum
Weight : 160 g
Shipping weight : 1 Kg
