Estimated Lead Time :1 – 10 Working days.
Manufacturer : Schneider Electric

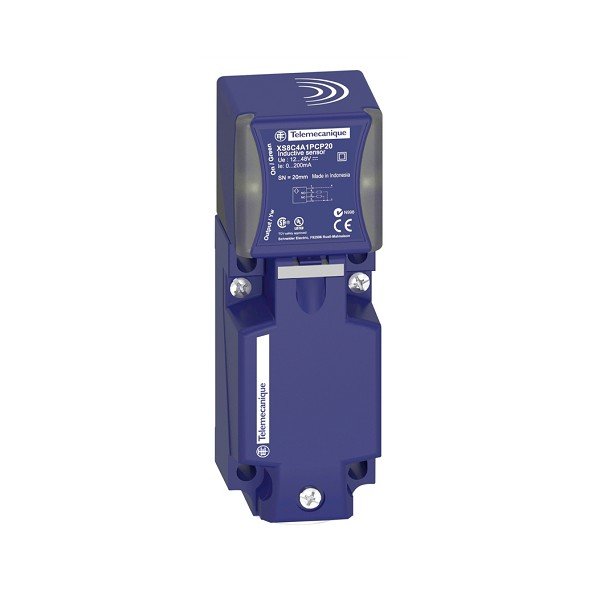

Product No : XS8C4A4PCP20
Product Type : Inductive sensor
Range of Product : Telemecanique Inductive proximity sensors XS
Sensor name : XS8
Sensor design : Flat form 40 x 40 x 117
Size : 11.7 cm
Body type : Fixed
Detector flush mounting acceptance : Non flush mountable
Material : Plastic
Enclosure Material : PBT
Type of output signal : Discrete
Wiring Technique : 4-wire
[Sn] nominal sensing distance : 4 cm
Discrete output function : 1 NO + 1 NC
Output circuit type : DC
Discrete output type : PNP
Electrical connection : Screw-clamp terminals, 4 x 1.5 mm²
[Us] rated supply voltage : 12…48 V DC with reverse polarity protection
Switching capacity in mA : <= 200 mA with overload and short-circuit protection IP degree of protection : IP67 conforming to IEC 60529 IP65 conforming to IEC 60529 IP69K conforming to DIN 40050 Detection face : 5 positions turret head Front Material : PBT Operating zone : 0…3.2 cm Repeat accuracy : <= 3% of Sr Differential travel : 3 - 15% of Sr Cable entry number : 1 tapped entry for M20 x 1.5 cable gland Status LED : Supply on: 1 LED (green) Output state: 1 LED (yellow) Supply voltage limits : 10…58 V DC Maximum residual current : 1.5 mA open state Switching frequency : <= 200 Hz Maximum voltage drop : <= 2 V at closed state Current consumption : 0...15 mA no-load Maximum delay first up : 7.5 ms Maximum delay response : 1.4 ms Maximum delay recovery : 2.5 ms Marking : CE Ambient air temperature for operation : -25 - 70 °C Ambient air temperature for storage : -40…85 °C Vibration resistance : 25 gn +/- 2 mm 10…55 Hz)IEC 60068-2-6 Shock resistance : 50 gn 11 ms IEC 60068-2-27 Dimensions (L x W x H) : 4 cm x 11.7 cm x 4 cm Weight : 0.24 Kg Shipping weight : 1.5 Kg
