Range of product : OsiSense XS
Series name : Application
Sensor type : Inductive proximity sensor
Device application : Rotation monitoring
Sensor name : XSA
Sensor design : Cylindrical M30
Size : 81 mm
Body type : Fixed
Detector flush mounting acceptance : Flush mountable
Material : Metal
Enclosure material : Nickel plated brass
Type of output signal : Discrete
Wiring technique : 2-wire
[Sn] nominal sensing distance : 0.39 in (10 mm)
Electrical connection : Cable
[Us] rated supply voltage : 24…240 V AC 50/60 Hz , 24…210 V DC
Switching capacity in mA : 5…200 mA DC , 5…350 mA AC
IP degree of protection : IP67 conforming to IEC 60529
Thread type : M30 x 1.5
Detection face : Frontal
Front material : PPS
Adjustable frequency range : 120…3000 cyc/mn
Operating zone : 0…0.31 in (0…8 mm)
Differential travel : 3…15% of Fr
Repeat accuracy : 3% of Sr
Status LED : 1 LED red output state
Supply voltage limits : 20…264 V AC/DC
Residual current : <= 1.5 mA open state
Switching frequency : <= 800 Hz
Voltage drop : <= 5.7 Vat closed state
Current consumption : 0...15 mAat no-load
Run-up delay at power-up : 9 s standard
Marking : CE
Threaded length : 2.24 in (57 mm)
Height : 1.18 in (30 mm)
Length : 3.19 in (81 mm)
Product weight : 0.66 lb(US) (0.3 kg)
Product certifications : CCC , CSA , UL
Ambient air temperature for operation : -13...158 °F (-25...70 °C)
Category : 18407 - WORLD SERVICE PARTS(SENSORS)
Discount Schedule : DS2
Discount Schedule : T
GTIN : 003389110367799
Nbr. of units in pkg. : 1
Package weight(Lbs) : 0.46000000000000002
Returnability : N
Country of origin : FR
Shipping weight : 1kg
Reviews
There are no reviews yet.

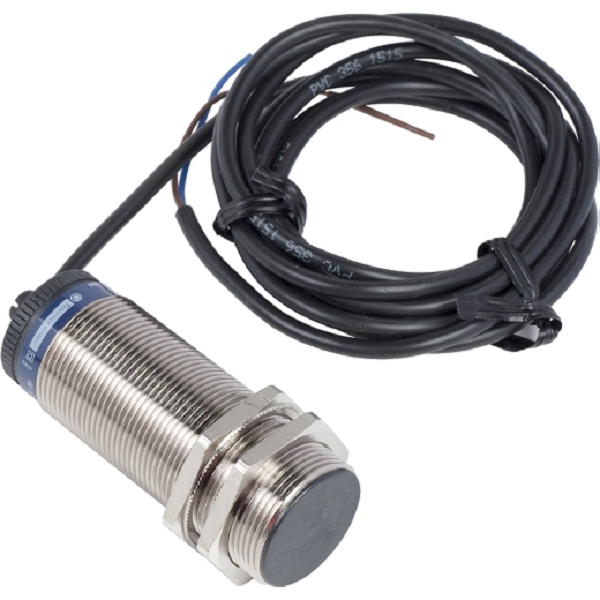

Be the first to review “XSAV1401418 SchneiderInductive sensor XSAV – M30 – Sn10mm – 120..3000c/mn – 24..240VAC/DC – cable”Cancel Reply
