Estimated Lead Time : 6 – 8 Weeks.
Manufacturer: Scheinder Electric
Part Number : XY2CB33

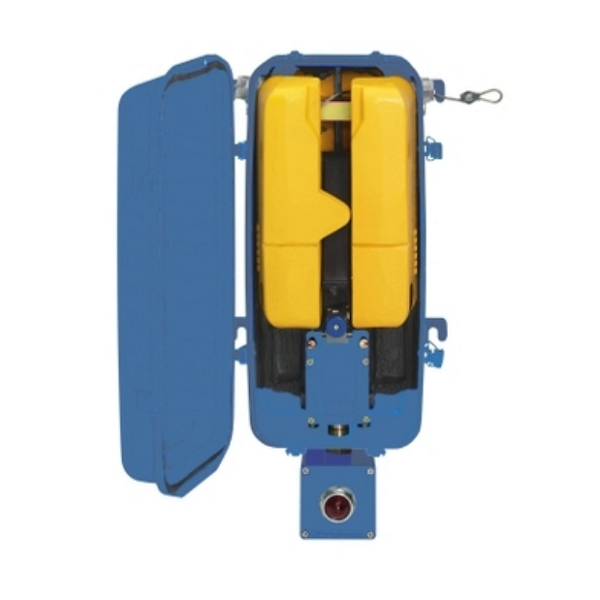

rope pull switch XY2CB – RH & LH sides – 1NC +1NO -pilot light 127V
Local signalling : With pilot light, 127 V
Number of cables : 2
Trigger cable maximum length : 100 m
Reset : From inside enclosure
[Us] rated supply voltage : 127 V
Contacts type and composition : 1 NC + 1 NO
Contact operation : Slow-break
Trigger cable anchor point : RH and LH sides
Light block supply : Via integral transformer
Secondary voltage : 6 V
Connections – terminals : Screw clamp terminal, 1 x 0.5…2 x 1.5 mm²
Tightening torque : 0.8…1.2 N.m
Cable entry number : 1 tapped entry for Pg 13.5 cable gland
Marking : CE
Mechanical durability : 60000 cycles
Distance between cable supports : 5 m
Terminals description ISO n°1 : (13-14)NO/ (11-12)NC
Net weight : 25.6 kg
Shipping Weight : 27 kg
