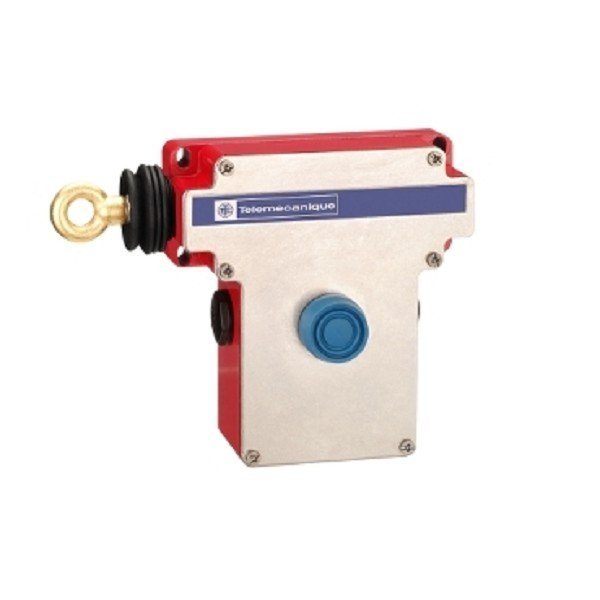

XY2CE2A270 Schneider Electric EMERGENCY S TO P TRIP WIRE SWITCH WITHOU

Estimated Lead Time : 1 -10 working days.

Manufacturer : Schneider Electric

EMERGENCY S TO P TRIP WIRE SWITCH WITHOU

Product No. : XY2CE2A270

Range of product

Telemecanique Emergency stop rope pull switches XY2C

Product or component type

Latching emergency stop rope pull switch

device short name

XY2CE

Housing colour

Red RAL 3000

Overvoltage category

Class I conforming to EN/IEC 61140

Class I conforming to NF C 20-030

Local signalling

Without pilot light

Number of cables

1

Trigger cable maximum length

70 m

Body material

Zamak

Cover material

Stainless steel

reset

By booted push-button

Contacts type and composition

2 NC

Contact operation

Slow-break

Trigger cable anchor point

LH side

Connections – terminals

Screw clamp terminal, 1 x 0.5…2 x 1.5 mm²

Tightening torque

0.8…1.2 N.m

Cable entry number

3 plain hole for Pg 13.5 or ISO M20 cable gland

Safety level

Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1

Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Safety reliability data

B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

marking

CE

Mechanical durability

60000 cycles

Distance between cable supports

5 m

[Ie] rated operational current

3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A

0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to EN/IEC 60947-1

300 V conforming to UL 508

300 V conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-1

Positive opening

With conforming to EN/IEC 60947-5-1

Maximum resistance across terminals

25 MOhm conforming to EN/IEC 60255-7 category 3

25 MOhm conforming to NF C 93-050 method A

Short-circuit protection

10 A cartridge fuse type gG conforming to EN/IEC 60269

Terminals description ISO n°1

(11-22)NC

(21-22)NC

Product weight

1.45 kg

Compatibility code

XY2CE

standards

Machinery directive 2006/42/EC

EN/IEC 60204-1

EN/IEC 60947-5-1

CSA C22.2 No 14

EN/ISO 13850

EN/IEC 60947-5-5

Work equipment directive 2009/104/EC

UL 508

Product certifications

UL category NISD emergency stop devices

CSA

CCC

Protective treatment

TC

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

10 gn (f= 10…300 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

50 gn 11 ms conforming to EN/IEC 60068-2-27

IP degree of protection

IP66 conforming to IEC 60529

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9 cm

Package 1 Width

20 cm

Package 1 Length

16 cm

Package 1 Weight

1.547 kg

Shipping weight : 2 Kg
