Estimated Lead Time : 6 – 8 Weeks.
Manufacturer: Schneider Electric
Part Number: XY2CE2A270H7

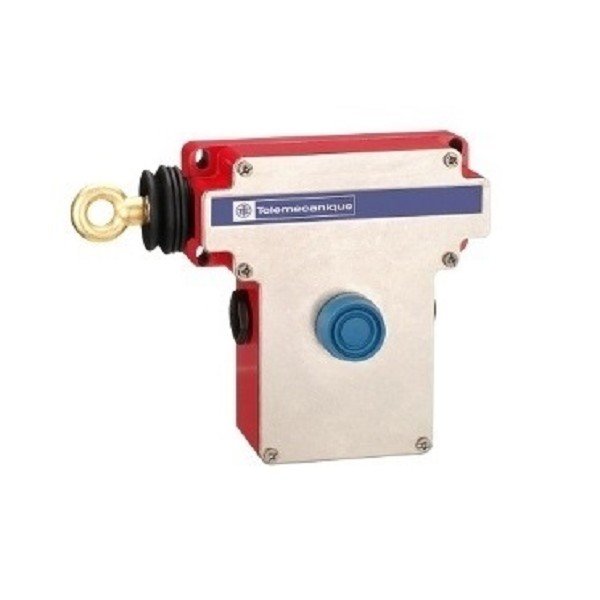

Latching emergency stop rope pull switch,Telemecanique rope pull switches XY2C, e XY2CE, LH side -2NC, booted pushbutton
Local signalling : Without pilot light
Number of cables : 1
Trigger cable maximum length : 70 m
Body material : Zamak
Cover material : Stainless steel
Reset : By booted push-button
Contacts type and composition : 2 NC
Contact operation : Slow-break
Trigger cable anchor point : LH side
Connections – terminals : Screw clamp terminal, 1 x 0.5…2 x 1.5 mm²
Tightening torque : 0.8…1.2 N.m
Cable entry number : 3 tapped entry for 1/2″ NPT conduit entry
Safety level : Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508.
Safety reliability data : B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20years limited by mechanical or contact wear
Marking : CE
Mechanical durability : 60000 cycles
Distance between cable supports : 5 m
Terminals description ISO n°1 : (11-12)NC / (21-22)NC
Net weight : 1.45 kg
Shipping weight : 3 kg
