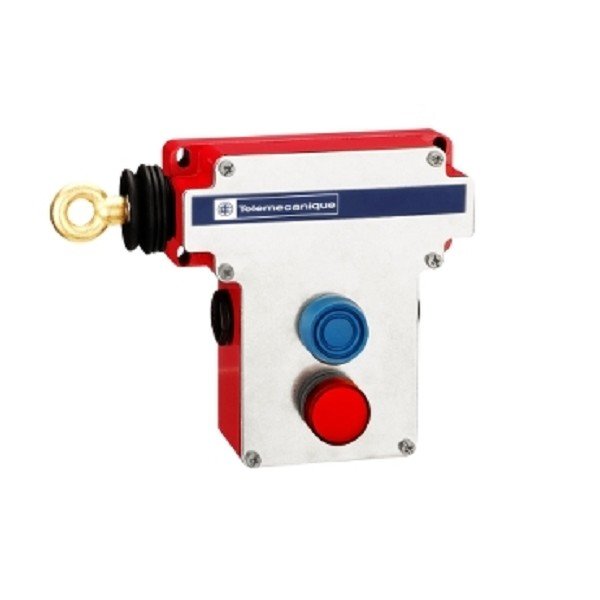

XY2CE2A296H7Schneider Electric Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, LH side, 2NC+2NO, pilot light 130 V

Estimated Lead Time : 6 – 8 Weeks.

Manufacturer: Schneider Electric

Part Number: XY2CE2A296H7

Description: Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, LH side, 2NC+2NO, pilot light 130 V

Range of product: Telemecanique Emergency stop rope pull switches XY2C

Product or component type: Latching emergency stop rope pull switch

Device short name: XY2CE

Housing colour: Red RAL 3000

Overvoltage category: Class I conforming to EN/IEC 61140, Class I conforming to NF C 20-030

Local signalling: With pilot light, red, 24…130 V

Number of cables: 1

Trigger cable maximum length: 70 m

Body material: Zamak

Cover material: Stainless steel

Reset: By booted push-button

[Us] rated supply voltage: 24…130 V AC/DC

Contacts type and composition: 2 NC + 2 NO

Contact operation: Slow-break

Trigger cable anchor point: LH side

Light block supply: Direct

Connections – terminals: Screw clamp terminal, 1 x 0.5…2 x 1.5 mm²

Tightening torque: 0.8…1.2 N.m

Cable entry number: 3 tapped entry for 1/2″ NPT conduit entry

Safety level: Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Safety reliability data: B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

Marking: CE

Mechanical durability: 60000 cycles

Distance between cable supports: 5 m

[Ie] rated operational current: 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A; 0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current: 10 A

[Ui] rated insulation voltage: 400 V (pollution degree 3) conforming to EN/IEC 60947-1; 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-1

Positive opening: With conforming to EN/IEC 60947-5-1

Maximum resistance across terminals: 25 MOhm conforming to EN/IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A

Short-circuit protection: 10 A cartridge fuse type gG conforming to EN/IEC 60269

Terminals description ISO n°1: (21-22)NC / (13-14)NO

Net weight: 1.47 kg

Shipping Weight: 3 Kg
