Estimated Lead Time : 6 – 8 Weeks.
Manufacturer: Schneider Electric
Part Number: XY2CE2A470EX

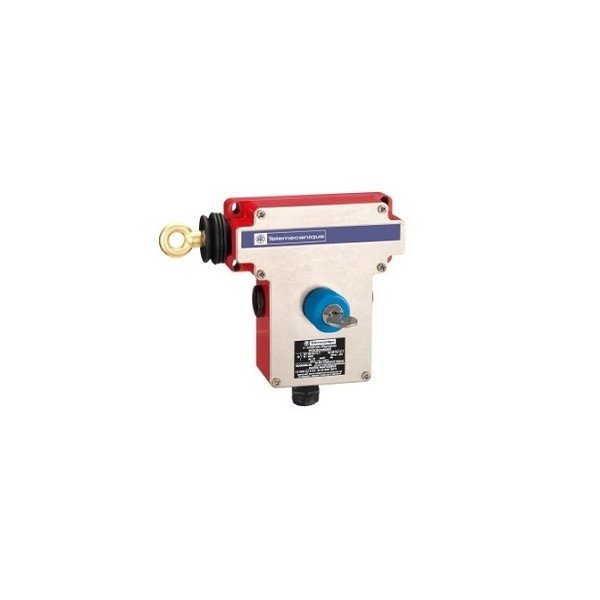

Latching emergency stop trip wire switch, Telemecanique Emergency stop rope pull switches XY2C, rope pull, LH side, 2NC
Number of cables : 1
Trigger cable maximum length : 70 m
Housing colour : Red RAL 3000
Key number : 421
Auxiliary contacts operation : Slow-break
Connections – terminals : Screw clamp terminal, 1 x 0.5…2 x 1.5 mm²
Tightening torque : 0.8…1.2 N.m
Cable entry number : 1 plain hole for ISO M20 cable gland. 2 plain hole with blanking plug for.
Marking : II2 D-Ex tb IIIC T85°C Db IP65
Safety level : Can reach PL = e with the appropriate monitoring system and correctly wired
conforming to EN/ISO 13849-1. Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. Can reach SIL 3 conforming to EN/IEC 61508
Safety reliability data : B10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear
Mechanical durability : 60000 cycles
Distance between cable supports : 10 m
Short-circuit protection : 10 A cartridge fuse type gG conforming to EN/IEC 60269
Width : 195 mm
Depth : 105 mm
Height : 142 mm
Net weight : 1.597 kg
Shipping weight : 3 kg
