Estimated Lead Time : 6 – 8 Weeks.
Manufacturer: Schneider Electric
Part number: XY2CE2C250TK

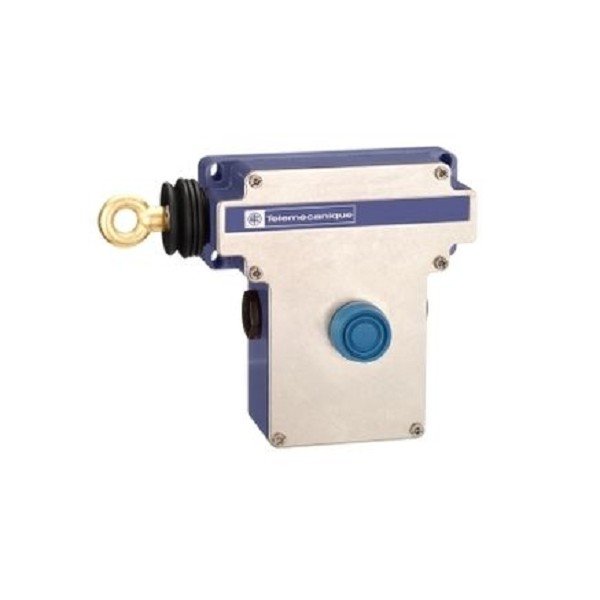

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable XY2CE, 300 V AC, 10 A
Local signalling : Without pilot light
Number of cables : 1
Trigger cable maximum length : 50 m
Below material : Nitril
Body material : Zamak
Cover material : Stainless steel
Reset : By booted push-button
Contacts type and composition : 1 NC + 1 NO
Contact operation : Slow-break
Trigger cable anchor point : LH side
Connections – terminals : Screw clamp terminal, 1 x 0.5…2 x 1.5 mm²
Tightening torque : 0.8…1.2 N.m
Cable entry number : 3 tapped entry Pg 13.5 cable gland
Safety level :
Can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1
Can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired EN/ IEC 61508
Safety reliability data : B10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
Marking : CE
Mechanical durability : 60000 cycles
Distance between cable supports : 5 m
Terminals description ISO n°1 :
(13-14)NO
(21-22)NC
Net weight : 1.45 kg
Shipping weight: 3 kg
