Estimated Lead Time : 6 – 8 Weeks.
Manufacturer: Scheinder Electric
Part Number :XY2CE2C290

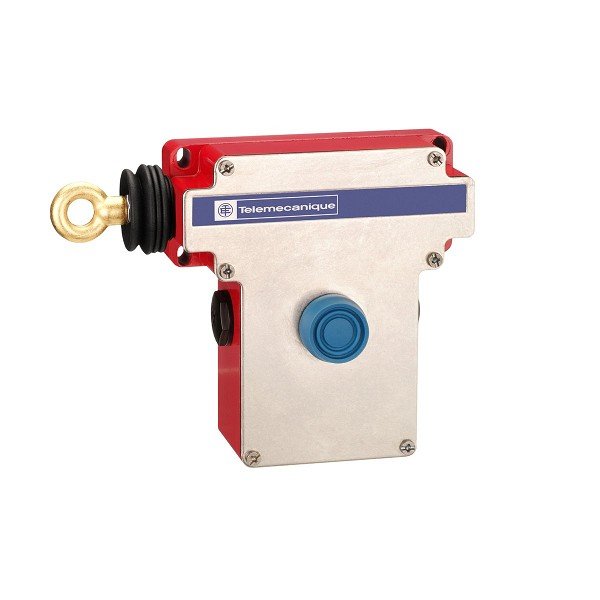

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, simple reset by flush push button
Local signalling : Without pilot light
Number of cables : 1
Trigger cable maximum length : 90 m
Bellow material : Nitril
Body material : Zamak
Cover material : Stainless steel
Reset : By booted push-button
Contacts type and composition : 1 NC + 1 NO
Contact operation : Slow-break
Trigger cable anchor point : LH side
Connections – terminals : Screw clamp terminal, 1 x 0.5…2 x 1.5 mm²
Tightening torque : 0.8…1.2 N.m
Cable entry number : 3 tapped entry for Pg 13.5 cable gland
Safety level : Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 / Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 / Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data : B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking : CE
Mechanical durability : 60000 cycles
Distance between cable supports : 5 m Terminals description ISO n°1 : (13-14)NO/ (21-22)NC
Net weight 1.45 kg
Shipping Weight : 3 kg
