Estimated Lead Time : Usually ships in 6 – 8 weeks.
Manufacturer: Scheinder Electric

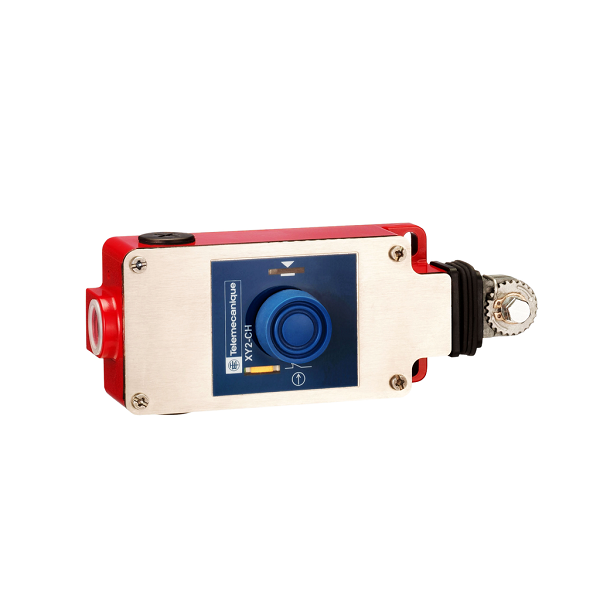

Part number: XY2CH13190
Range of product : Telemecanique Emergency stop rope pull switches XY2C
Product or component type : Latching emergency stop rope pull switch
Device short name : XY2CH
Housing colour : Red RAL 3000
Overvoltage category : Class I conforming to EN/IEC 61140
: Class I conforming to NF C 20-030
Local signalling : Without pilot light
Number of cables : 1
Trigger cable maximum length : 30 m
Body material : Zamak
Cover material : Stainless steel
Reset : By flush push-button
Contacts type and composition : 2 NC + 1 NO
Contact operation : Slow-break
Trigger cable anchor point : RH or LH side
Connections – terminals : Screw clamp terminal, 1 x 0.34…1 x 1 mm²
Screw clamp terminal, 1 x 0.34…2 x 0.75 mm²
Tightening torque : 0.8…1.2 N.m
Cable entry number : 3 tapped entry for Pg 13.5 cable gland
Safety level : Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
: Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
: Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data : B10d = 4000000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking : CE
Mechanical durability : 800000 cycles
Distance between cable supports : 5 m
[Ie] rated operational current : 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 appendix A
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current : 6 A
[Ui] rated insulation voltage : 400 V (pollution degree 3) conforming to EN/IEC 60947-1
: 300 V conforming to UL 508
[Uimp] rated impulse withstand voltage : 4 kV conforming to EN/IEC 60947-1
Positive opening : With conforming to EN/IEC 60947-5-1
Maximum resistance across terminals : 25 MOhm conforming to EN/IEC 60255-7 category 3
: 25 MOhm conforming to NF C 93-050 method A
Short-circuit protection : 6 A cartridge fuse type gG conforming to EN/IEC 602692
Terminals description ISO n°1 : (21-22)NC
(31-32)NC
(13-14)NO
Compatibility code : XY2CH
Net weight 0.865 kg
Shipping Weight : 2 kg
