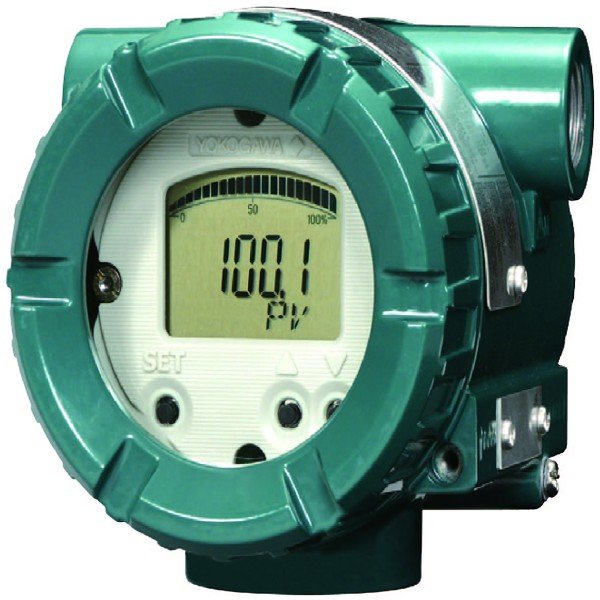

YTA610-JA1C4DN/KU2/N4/A Yokogawa Temperature Transmitter

Estimated Delievery Time : 4 – 6 Weeks

Manufacturer: Yokogawa

Product Number : YTA610-JA1C4DN/KU2/N4/A

Product Type : Transmitter for temperature

YTA610-JA1C4DN/KU2/N4/A

YTA610 – Series : Temperature Transmitter

J – Output Signal : 4 to 20 mA DC with digital communication HART 7protocol

A – Always A

1 – Sensor Input : Single

C – Housing code : Stainless

4 – Electrical connection : M20 female

D – Integral indicator : Digital Indicator

N – Mounting bracket : None

/ – Optional codes : Optional Specification

KU2 – Apex :

4-20mA: [Intrinsically safe approval ]

Applicable Standard: EN 60079-0: 2012+A11:2013, EN

60079-11: 2012

Certificate No. FM16ATEX0019X II 1 G Ex ia IIC T5…T4 Ga

Ambient Temperature: –40 to 70°C for T4, –40 to 50°C for T5

Enclosure: IP66/IP67 in accordance with only IEC 60529

Entity Parameters: Supply/Output circuit: Ui=30V, Ii=200mA, Pi=1.0W, Ci=22nF, Li=0mH

Sensor circuit: Uo=6V, Io=90mA, Po=135mW, Co=10μF, Lo=3.9mH

Dielectric strength: 500 V a.c.r.m.s.,1 min [+, -, C, 1, 2, 3, 4, 5] to Earth terminal [+, -, C] to [1, 2, 3, 4, 5]

[Flameproof and Dust Ignition Proof Approval]

Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014

Certificate: KEMA 07ATEX0130

II 2 G Ex db IIC T6/T5 Gb, II 2 D Ex tb IIIC T70°C/T90°C Db

Ambient Temperature for Gas Atmospheres: –40 to 75°C for T6, –40 to 80°C for T5

Ambient Temperature for Dust Atmospheres: –30 to 65°C for T70°C, –30 to 80°C for T90°C

Enclosure: IP66/IP67

Electrical Connection: 1/2 NPT female and M20 female*1

N4 – Wired tag plate : SUS316 stainless steel tag plate wired onto transmitter

A- Lightning protector : Allowable current: Max. 6000A(8×20μs), repeating 1000A(8×20μs), 100 times

Shipping Weight : 4.5 Kg
