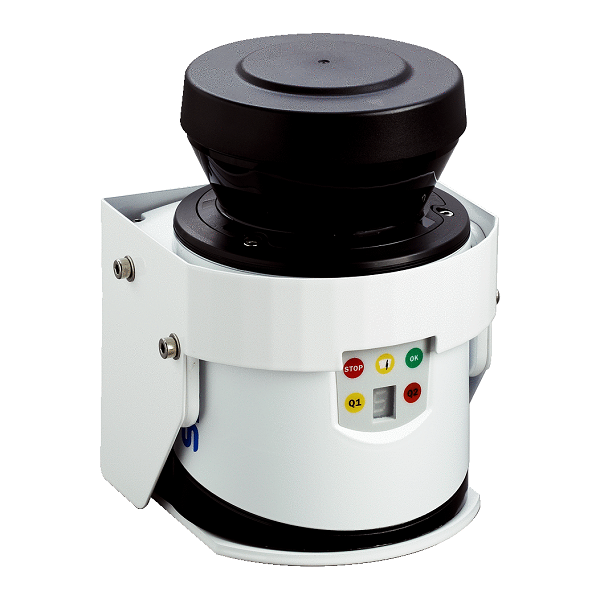

2D laser scanners LMC122-11001 VdS Security Indoor

Part Number : 1051315

Manufacturer: SICK Sensors

Version : Short Range

Field of application : Security Indoor

Light source : Infrared (905 nm)

Laser class : 1 (IEC 60825-1 (2007-3))

Aperture angle : 270°

Scanning frequency : 50 Hz

Angular resolution : 0.25°, 0.5°

Heating : No

Operating range : 0.5 m … 20 m

Max. range with 10 % reflectivity : 18 m

Amount of evaluated echoes : 2

Response time : ≥ 20 ms

Detectable object shape : Almost any

Systematic error : ± 30 mm 1)

Statistical error : ± 12 mm 1)

Integrated application : Field evaluation with flexible fields, security conform parameterization

Number of field sets : 10 fields

Simultaneous evaluation cases : 10

1) Typical value, actual value depends on environmental conditions.

Serial (RS-232) : Yes

Function : Host, AUX

Data transmission rate : 9.6 kBaud … 115.2 kBaud

Ethernet : Yes

Function : Host

Data transmission rate : 10/100 MBit/s

Protocol : TCP/IP

CAN bus : Yes

Function : Extension of outputs

PROFIBUS DP : –

PROFINET : –

DeviceNet : –

Switching inputs : 4 digital

Switching outputs : 3 (2 relay, 1 digital)

Optical indicators : 1 7-segment display (plus 5 LEDs showing device status, contamination warning and initial condition, both can be activated)

Electrical connection : 1 x system plug with screw terminal block

Operating voltage : 9 V DC … 30 V DC

Power consumption : 20 W, typ. 8 W

Housing color : Black (RAL 9005)

Enclosure rating : IP 65 (EN 60529, Section 14.2.5)

Protection class : III (EN 50178 (1997,10))

Weight : 1.1 kg, without connecting cables

Dimensions (L x W x H) : 105 mm x 102 mm x 152 mm

Object remission : 2 % ….. 1,000 % (reflectors)

Electromagnetic compatibility (EMC) : EN 61000-6-2:2005 / EN 61000-6-4 (2007-01)

Vibration resistance : EN 60068-2-6 (1995-04)

Shock resistance : EN 60068-2-27 (1993-03)

Ambient operating temperature : 0 °C … +50 °C

Storage temperature : –30 °C … +70 °C

Ambient light immunity : 40,000 lx

Items supplied : LMS12x VdS (Indoor), Mounting protection bracket VdS 2 (short)

Note on use : Not suitable for personnel protection
