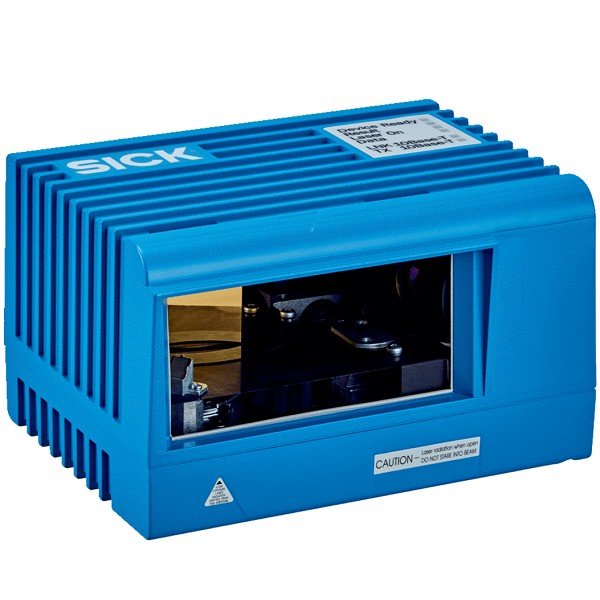

2D laser scanners LMS400-2000 Indoor

Estimated Lead Time : 4-6 Weeks

LMS400-2000

2D laser scanners LMS400-2000 Indoor

Part Number : 1041725

Manufacturer: SICK Sensors

Version Short Range

Field of application Indoor

Reading field Front

Light source Visible red light (650 nm)

Laser class 2, in standby mode laser class 1 according to IEC60825-1:2007

Aperture angle 70°

Scanning frequency 270 Hz … 500 Hz

Angular resolution 0.1° … 1.0°, configurable

Operating range 0.7 m … 3 m

Max. range with 10 % reflectivity 3 m

Response time : ≥ 2 ms

Detectable object shape : Almost any

Systematic error : ± 4 mm

Statistical error : ± 3 mm, ± 10 mm

Integrated application : Level Control

1) Typical value, actual value depends on environmental conditions.

Serial (RS-232) : Yes

Function : Host, AUX

Ethernet : Yes

Function : Host

Data transmission rate : 10 Mbit, half-duplex

Protocol : TCP/IP

CAN bus : –

PROFIBUS DP : –

PROFINET : –

DeviceNet : –

Switching inputs : 4

Switching outputs : 5 (4 x PNP / analog 1 x 4 mA … 20 mA)

Optical indicators : 6 LEDs

Operating voltage : ≤ 24 V DC, ± 15 %

Power consumption : 25 W

Housing : Aluminum die cast

Housing color : Light blue (RAL 5012)

Enclosure rating : IP 20, DIN 40 050 1)

Weight : 2.3 kg

Dimensions (L x W x H) : 179 mm x 107 mm x 130 mm

1) With IP65 plug-in cover.

Object remission : 4.5 % … 100 %

Electromagnetic compatibility (EMC) : EN 61000G6G2:2001 / EN 61000G6G4:2001

Vibration resistance : EN 60068G2G6, G27, G29, G64

Shock resistance : EN 60068G2G6, G27, G29, G64

Ambient operating temperature : 0 °C … +40 °C

Storage temperature : –20 °C … +70 °C

Note on use : Not suitable for personnel protection

Selectable region of interest (ROI) : From 50 mm x 3,000 mm to 1,000 mm x 1,750 mm

Number of columns : Up to 50 equidistant or 30 freely positionable

Minimum column width : ≥ 50 mm

Minimum detectable object : 30 mm x 30 mm

Smallest height threshold above the container floor : 30 mm

Switching threshold output : Telegram, switch outputs or analog output

Output of height values in the columns : Telegram, Analog output

Shipping Weight : 3.4 Kg
