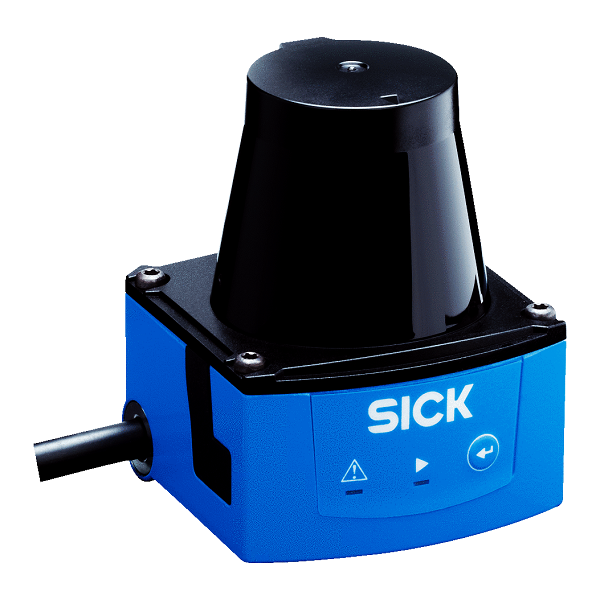

2D laser scanners TIM310-1030000 Indoor

Estimated Lead Time : 4-6 Weeks

TIM310-1030000

2D laser scanners TIM310-1030000 Indoor

Part Number : 1052627

Manufacturer: SICK Sensors

Field of application : Indoor

Light source : Infrared (850 nm)

Laser class : 1, EN 60825-1 (2007-10), eye-safe

Aperture angle : 270°

Scanning frequency : 15 Hz

Angular resolution : 1°

Operating range : 0.05 m … 4 m

Max. range with 10 % reflectivity : 2 m

Response time : Typ. 134 ms

Detectable object shape : Almost any

Systematic error : ± 40 mm

Statistical error : ± 30 mm

Integrated application : Field evaluation

Number of field sets : 16 field triples (48 fields, 1 triple (3 fields) programmable directly at the scanner)

Simultaneous evaluation cases : 1 (3 fields)

1) Typical value, actual value depends on environmental conditions.

Serial (RS-232) : –

Ethernet : –

CAN bus : –

PROFIBUS DP : –

PROFINET : –

DeviceNet : –

USB : Yes, micro USB

Function : AUX, parameterization

Switching inputs : 4 (PNP)

Switching outputs : 3 (PNP, Additional 1 x “Device Ready”)

Delay time : 134 ms … 30,000 ms (programmable)

Dwell time : 67 ms … 10,000 ms (programmable)

Optical indicators : 2 LEDs (ON, switching status)

Electrical connection : 1 x 15-pin D-sub HD male connector (0.9 m)

Operating voltage : 9 V DC … 28 V DC

Power consumption : 3 W

Housing color : Light blue (RAL 5012)

Enclosure rating : IP 65, EN 60529/A1:2000-02

Protection class : III, EN 60950-1/A11 (2009-03)

Weight : 150 g, without connecting cables

Dimensions (L x W x H) : 60 mm x 60 mm x 79 mm

Object remission : 4 % … > 1,000 % (reflectors)

Electromagnetic compatibility (EMC) : EN 61000-6-3 (2007-01) / EN 61000-6-2 (2005-08)

Vibration resistance : EN 60068-2-6 (2008-02)

Shock resistance : EN 60068-2-27 (2009-05)

Ambient operating temperature : –10 °C … +50 °C

Storage temperature : –30 °C … +70 °C

Ambient light immunity : 15,000 lx

Shipping Weight: 1 Kg
