Estimated Lead Time: 4 – 6 weeks
Manufacturer: SICK Sensors

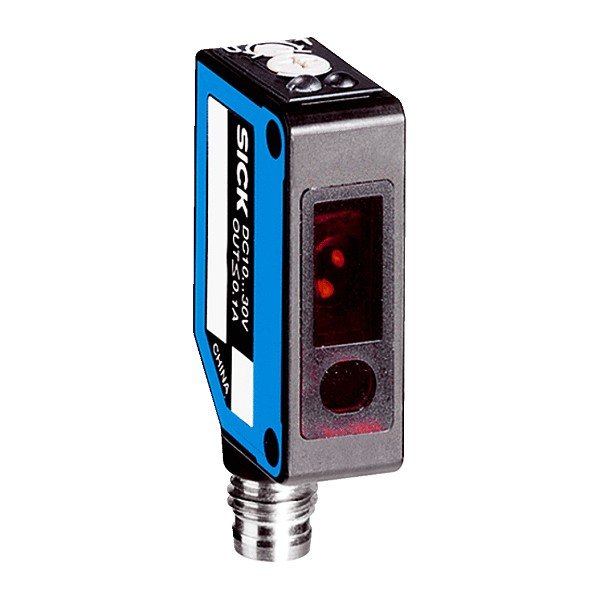

Product type : Photoelectric sensors WTB8-P2231
Product No : 6033209
Sensor/detection principle : Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) : 11 mm x 31 mm x 20 mm
Housing design (light emission) : Rectangular
Sensing range max. : 30 mm … 300 mm
Sensing range : 40 mm … 300 mm
Type of light : Visible red light
Light source : LED
Light spot size (distance) : Ø 20 mm (300 mm)
Wave length : 650 nm
Adjustment : Potentiometer, 4 turns
Supply voltage : 10 V DC … 30 V DC
Ripple : ± 10 %
Power consumption : = 30 mA
Output type : PNP, Open Collector
Switching mode : Light/dark switching
Switching mode selector : Selectable via light/dark rotary switch
Signal voltage PNP HIGH/LOW : Approx. VS – 1.8 V / 0 V
Output current Imax. : = 100 mA
Response time : = 0.5 ms 4)
Switching frequency : 1,000 Hz 5)
Connection type : Connector M8, 4-pin
Weight : 10 g
Housing material : ABS plastic
Optics material : Plastic, PMMA
Enclosure rating : IP 67
Items supplied : Stainless steel mounting bracket (1.4301/304) BEF-W100-A
Ambient operating temperature : –25 °C … +55 °C
Ambient storage temperature : –40 °C … +70 °C
Shipping weight: 1 Kg
