Estimated Lead Time : 6 – 8 Weeks
Manufacturer : SICK Sensors

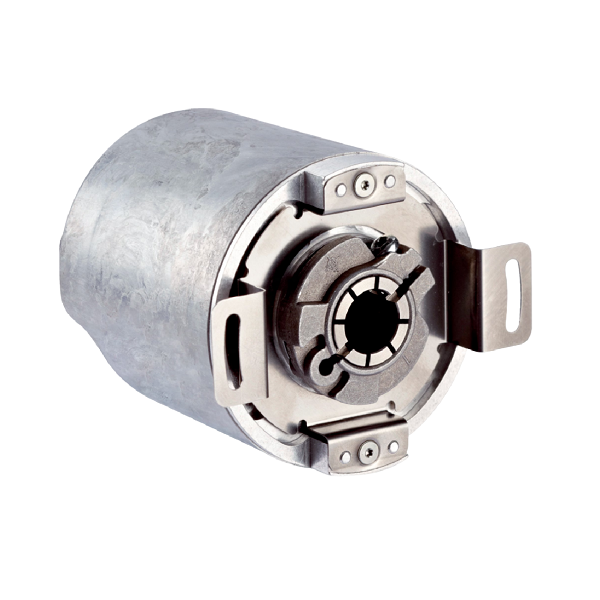

Part Number : AFM60A-BEIB018x12
Connection type : Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial
Supply voltage : 10 … 30 V
Power consumption : ≤ 3 W (without load)
Reverse polarity protection : Yes
MTTFd: mean time to dangerous failure : 80 years (EN ISO 13849-1)
Mechanical design : Blind hollow shaft
Shaft diameter : 12 mm
Weight : 0.2 kg
Shaft material : Stainless steel
Flange material : Aluminum
Housing material : Aluminum
Start up torque : 0.8 Ncm (+20 °C)
Operating torque : 0.6 Ncm (+20 °C)
Permissible movement static :
± 0.3 mm (radial)
± 0.5 mm (axial)
Permissible movement dynamic :
± 0.05 mm (radial)
± 0.1 mm (axial)
Operating speed : ≤ 6,000 min?¹
Moment of inertia of the rotor : 40 gcm²
Bearing lifetime : 3.0 x 10^9 revolutions
Angular acceleration : ≤ 500,000 rad/s²
Shipping Weight : 1.2 kg
