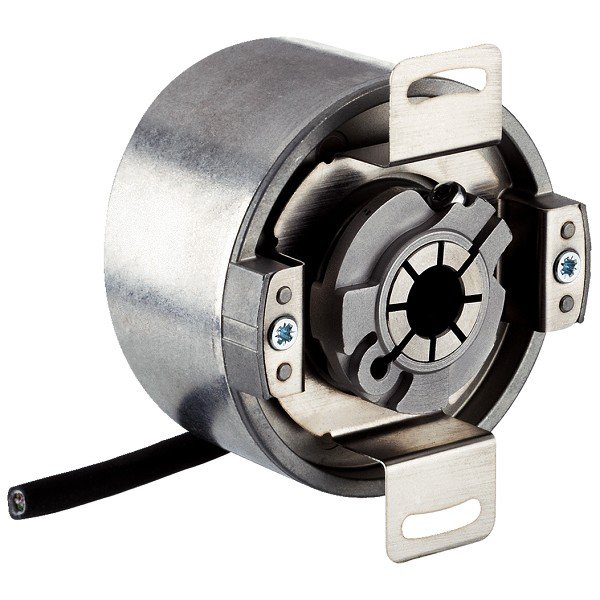

Absolute encoders AFS/AFM60 SSI
Type: AFM60E-BEAM002048
Part number: 1053190
PERFORMANCE
Max. number of steps per revolution : 2,048
Max. number of revolutions : 4,096
Resolution power : 2,048 x 4,096
Resolution : 11 bit x 12 bit
Error limits : ± 0.3°
Repeat accuracy : 0.002°
Measuring step : 0.09° 360° / number of steps per revolution = 0.09°
Initialization time : 50 ms 1)
Position forming time : < 1 µs INTERFACES - : SSI/GRAY Code type : Gray Code sequence : CW/CCW parameter adjustable Interface signals : Clock +, Clock -, Data +, Data- Clock frequency : 1 MHz 1) Set (electronic adjustment) : H-active (L = 0 - 3 V, H = 4,0 - Us V) CW/CCW (counting sequence when turning) : L-active (L = 0 - 1,5 V, H = 2,0 - Us V) Measuring step deviation : ± 0.2° Max. number of steps per revolution : 2,048 ELECTRICAL DATA Connection type : Cable, universal, 5 m 1) Power consumption : 0.5 W (without load) Operating voltage range : 4.5 V DC ... 32 V DC Reverse polarity protection : Yes MTTFd: mean time to dangerous failure : 250 years (EN ISO 13849-1) 2) MECHANICAL DATA Mechanical interface : Blind hollow shaft Shaft diameter : 12 mm Start up torque : 0.8 Ncm (+20 °C) Operating torque : 0.6 Ncm (+20 °C) Permissible movement axial static/dynamic : ± 0.5 mm, ± 0.2 mm Permissible movement radial static/dynamic : ± 0.3 mm, ± 0.1 mm Moment of inertia of the rotor : 40 gcm² Bearing lifetime : 3.0 x 10^9 revolutions Max. angular acceleration : ≤ 500,000 rad/s² AMBIENT DATA EMC : (according to EN 61000-6-2 and EN 61000-6-3) 1) Enclosure rating : IP 65, shaft side (according to IEC 60529),IP 67, housing side (according to IEC 60529) Permissible relative humidity : 90 % (condensation of the optical scanning not permitted) Working temperature range : –40 °C ... +85 °C Storage temperature range : –40 °C ... +100 °C, without package Resistance to shocks : 50 g, 6 ms (according to EN 60068-2-27) Resistance to vibration : 20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6) Shipping Weight : 1.3 Kg Download PDF File AFM60E-BEAM002048
