Estimated Lead Time : 6 – 8 weeks
Manufacturer : SICK Sensors

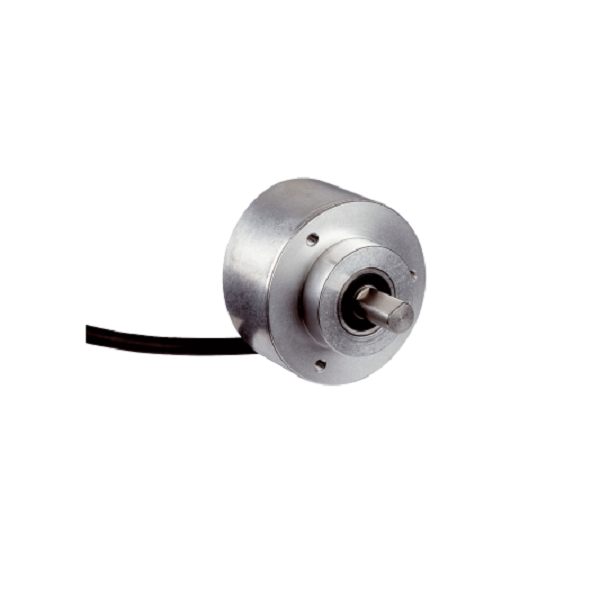

Part Number : AFM60E-S4AK002048
Number of steps per revolution (max. resolution) : 2,048 (11 bit)
Number of revolutions : 4,096 (12 bit)
Max. resolution (number of steps per revolution x number of revolutions) : 11 bit x 12 bit (2,048 x 4,096)
Error limits G : 0.2° 1)
Repeatability standard deviation σr : 0.002° 2)
Communication interface : SSI
Initialization time : 50 ms 1)
Position forming time : < 1 µs Code type : Gray Code sequence parameter adjustable : CW/CCW (V/R¯) parameter adjustable Clock frequency : ≤ 1 MHz 2) Set (electronic adjustment) : H-active (L = 0 - 3 V, H = 4,0 - Us V) CW/CCW (counting sequence when turning) : L-active (L = 0 - 1,5 V, H = 2,0 - Us V) Connection type : Cable, 8-wire, universal, 1.5 m 1) Supply voltage : 4.5 ... 32 V Power consumption : ≤ 0.7 W (without load) MTTFd: mean time to dangerous failure : 250 years (EN ISO 13849-1) 2) Mechanical design : Solid shaft, face mount flange Shaft diameter : 10 mm Shaft length : 19 mm Weight : 0.3 kg 1) Shipping weight : 2 kg
